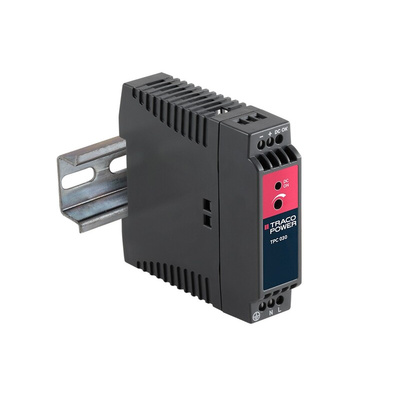

TPC 030-148, TRACOPOWER TPC DIN Rail Power Supply, 85 → 264V ac ac, dc Input, 48V dc dc Output, 600mA Output, 30W, Блок питания

TPC Series 20 W to 120 W

The TPC series is a family of DIN Rail power supplies operating with high efficiency to comply with the requirements of the European Ecodesign directive.
These DIN Rail PSUs have universal input of 85 V ac to 264 V ac or 90 V dc to 375 V dc and are designed for class 1 operation.
With the optional active current sharing redundancy module, these power supplies provide a reliable true redundant DC supply.
With the optional redundancy modules, the power supplies are able to achieve a reliable redundant DC supply.
In normal operation, the module achieves equal current share for both power supplies connected. If one of the power supplies fails, the output power is provided in full by the remaining operating power supply.

Features and Benefits

•High efficiency across full load range
•Output voltage adjustable
•Low ripple and noise
•Overload and short circuit protection
•Compact plastic case
•DIN Rail mountable

Product Application Information

For use in industrial, office and residential environments.

Note

The redundancy of the DC system is monitored by a DC-OK signal
TPC–REM240–24 Output 24 VDC, RS 808-6673
TPC–REM240–48 Output 48 VDC, RS 808-6677"
