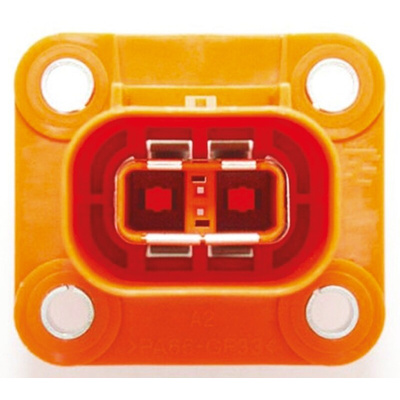

2103124-4, TE Connectivity, HVA280 EV Connector Socket, 40A, Разъем

AMP+ HVA280 Low to Medium Current Headers

TE Connectivity’s AMP+ HVA280 touch-proof headers are designed for flexibility with options for various electrical vehicle device applications. These EV header connectors have a current carrying capability up to 40A at 85°C and a 2-4mm2 multicore wire range, the AMP+ headers can be utilized with mullticore or individually shielded wire. Multiple latching options and an integrated internal HVIL with multiple routing options allow package size optimization and flexibility.

Voltage rating: Up to 600V individually shielded wire up to 750V multicore wire
Current rating: Up to 40A @ 85°C
Temperature range: -40°C to 140°C
Shielding: 360° from wire to device
For use with multi-core or individually shielded wire
Touch proof
IP6K9K rated
Integrated internal HVIL

Note

808-6728 is a terminal kit.

Approvals

USCAR, RoHS

TE Connectivity AMP+

AMP+ HVA280 Connectors Data Sheet
