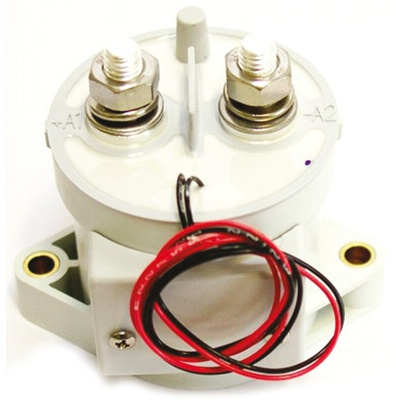

2098190-1, TE Connectivity AMP+ EVC500 Series Contactor, 1-Pole, 500 A, Контактор

TE Connectivity AMP+ Electric Vehicle Contactor

The AMP+ high voltage contactor range from TE Connectivity are a hermetically sealed and intrinsically safe solution that will provide both fast and reliable switching of a high voltage battery to the vehicle systems found in both hybrid and electric vehicles. The AMP+ high voltage contactor 500-500L offers 900 VDC and 500 Amps continuous current carrying capabilities in a compact package Capable of 2000 Amp interrupt at 320 VDC, the 135 model offers 900Vdc and 135 Amps continuous current capacity. AMP+ high voltage contactors reliably provide current switching capability in harsh and explosive operating environments with no oxidation or contamination of contacts during long periods of non-operation.

• Hermetically sealed
• 8kv (135) / 12kV (500) isolation
• Gas filled inert contact chamber
• Flying leads for coil connections
• Coil voltage 12Vdc
• Bottom mounting

Versions Available

808-6771 – 135A, 900V dc (135) 1 million cycle Mechanical life
808-6774 – 500A, 450V dc (500) 500k cycle Mechanical Life
808-6778 – 500A, 900V dc (500) 500k cycles Mechanical Life

Note

Connection hardware included for 808-6774 , 808-6778. No connection hardware included for 808-6771 (M5 thread)

Approvals

RoHS
