RS PRO General Purpose Momentary Foot Switch - Thermoplastic Case Material, DPST, 3 A Contact Current, 24V Contact, Ножной выключатель

RS PRO General Purpose Momentary Foot Switch - Thermoplastic Case Material, Double Pole Single Throw (DPST), 3 A

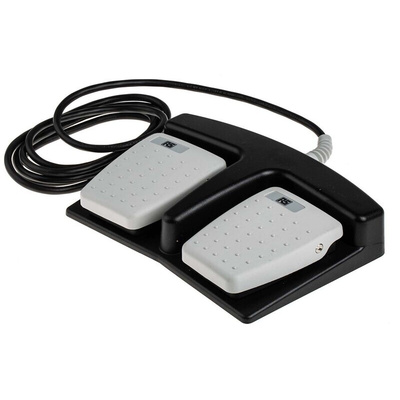

This RS PRO general-purpose momentary footswitch with double pedals and a double pole, single throw (DPST) switch is suitable for conditions where it's a safer option for operating machinery than a hand switch. As it's waterproof, it's also well suited to areas that might be wet. The dual pedals are used to change contacts within an electrical circuit.

This product features a durable and strong glass-filled plastic body. A low-profile, rear-hinged switch means you'll find it comfortable to use, and it also features an all-plastic construction, raised tread pattern and anti-slip pad.

This device is safe for medical situations, meeting IEC a60601-1nd UL 60601-1 approvals. It's also certified as IPX7 compliant for ingress protection. This gives it protection from accidental submersion in 1 m of water for up to 30 minutes.

Features and Benefits

• Momentary general-purpose foot switch with thermoplastic casing
• Contact voltage rating of 24 V
• Silver contact material with double pole single throw (DPST) configuration
• Contact current rating of 3 A
• IP rating of IPX7
• Black and grey colour

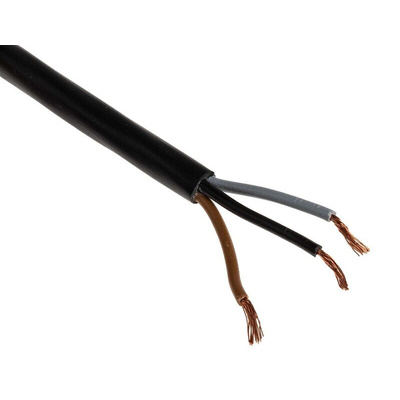

• Supplied with 2 m of black 3-core cable
• Dimensions of 150 mm x 207 mm x 42 mm
• RoHS (Restriction of Hazardous Substances) compliant
• ANSI/AAMI ES60601-1:2005/(R)2012, CSA C22.2 No. 60601-1:14, EN 60601-1:2006, EN 60950, UL 60601-1:2005, UL File No E353500 standards met
