RS PRO General Purpose Momentary Foot Switch - Thermoplastic Case Material, DPST, 3 A Contact Current, 24V Contact, Ножной выключатель

RS PRO General Purpose Momentary Foot Switch - Thermoplastic Case Material, Double Pole Single Throw (DPST), 3 A

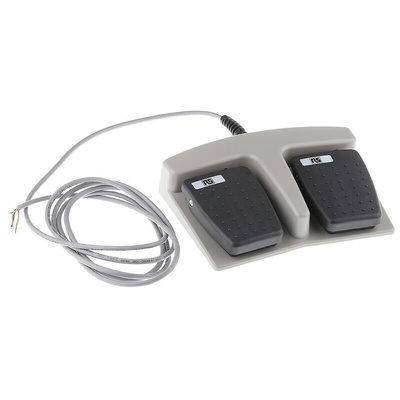

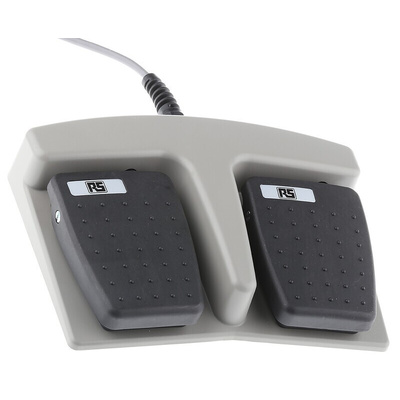

This RS PRO general-purpose momentary foot switch is waterproof, making it well suited to applications where contact with water is likely. It uses foot pressure applied to double pedals to change contacts within an electrical circuit.

The double pole, single throw (DPST) switch handles well in rugged conditions and boasts a tough, glass-filled plastic body providing an IPX7 level of ingress protection. This gives the component protection from accidental submersion in 1 m of water for up to 30 minutes. Its low-profile, rear-hinged switch is designed for improved user comfort with an all-plastic construction, raised tread pattern and anti-slip pad.

The pedal is medically safe, meeting IEC a60601-1nd UL 60601-1 approvals. You'll find that this foot switch is well matched to conditions where hand-operated switches might pose a safety concern.

Features and Benefits

• Momentary general-purpose foot switch with thermoplastic casing
• Contact voltage rating of 24 V
• Silver contact material with double pole single throw (DPST) configuration
• Contact current rating of 3 A
• IP rating of IPX7
• Black and grey colour
• Supplied with 2 m of black 3-core cable
• Dimensions of 150 mm x 207 mm x 42 mm
• RoHS (Restriction of Hazardous Substances) compliant
• ANSI/AAMI ES60601-1:2005/(R)2012, CSA C22.2 No. 60601-1:14, EN 60601-1:2006, EN 60950, UL 60601-1:2005, UL File No E353500 standards met

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
