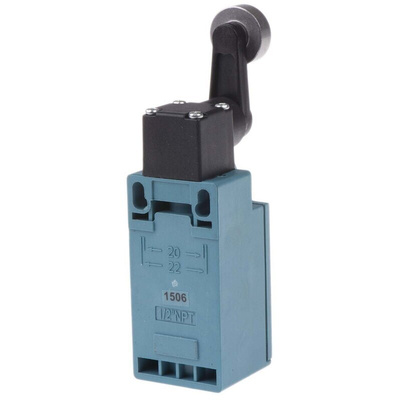

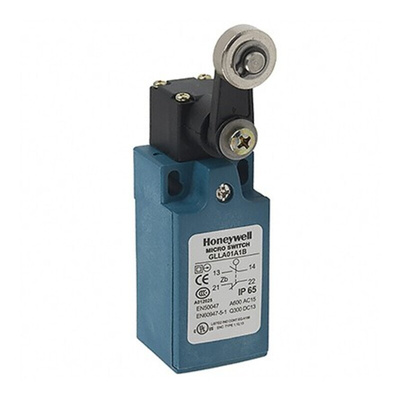

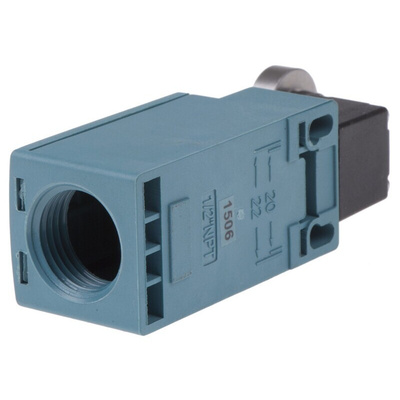

GLLA01A1B, Honeywell GLL Series Roller Lever Limit Switch, NO/NC, IP66, SPDT, Plastic Housing, 600V ac Max, 10A Max

Honeywell Snap-Action Roller Lever Limit Switch, -10°C to +85°C, 250V DC - GLL Series - GLLA01A1B

This roller lever limit switch from Honeywell is a miniature proximity sensing device. Its robust glass fibre-reinforced PBT (polybutylene terephthalate) exterior is resistant to impact and heat, providing superior protection to its inner working parts for use in heavy-duty industrial environments. The snap-action mechanism means that the contacts open and close rapidly to ensure quick response times. For enhanced safety, the switch is double-insulated to reduce the risk of electrical hazards. A hinge cover lets you easily access and wire the device for fast and simple set-up.

Features & Benefits

• Galvanically isolated contacts for enhanced protection against electrical faults
• Wide operating temperature range of -10°C to +80°C for use in hot and cold environments
• IP65 (ingress protection) rating means it's dust-tight and protected against low-pressure water jets

Applications

• Packaging equipment
• Transportation hubs
• Assembly lines and conveyors

What kind of actuator does this limit switch have?

This limit switch has a roller lever actuator that's adjustable so you can easily shorten or extend its length to meet your requirements.

Approvals

UL/ UL listed for Canada

Honeywell Sensing and Control - GLLA01A1B

Datasheet

Instruction Sheet - GLLA01A1B
