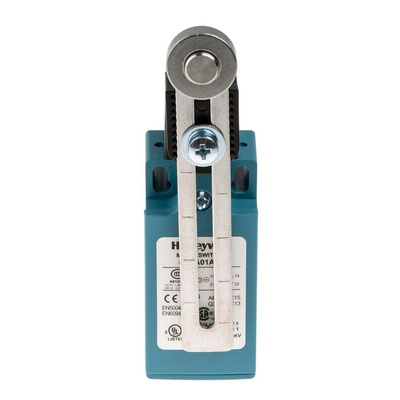

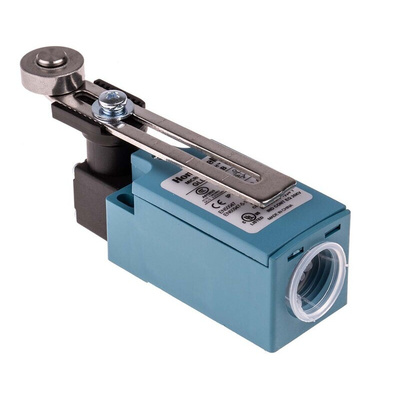

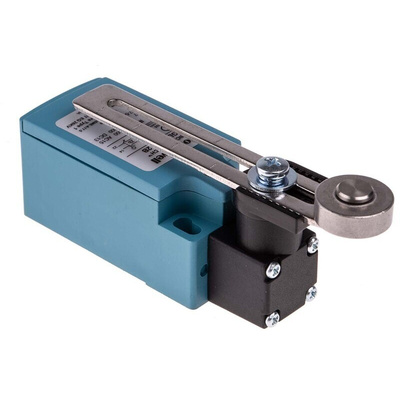

GLLA01A2B, Honeywell GLL Series Adjustable Roller Lever Limit Switch, NO/NC, IP66, SPDT, Plastic Housing, 300V ac Max, 10A Max

Honeywell Snap-Action Adjustable Roller Lever Limit Switch, NO/NC, 250V DC - GLL Series - GLLA01A2B

This miniature limit switch from Honeywell is specially designed for industrial applications where space is restricted. Its compact dimensions of 30.5 (length) x 62 (width) x 31mm (depth) mean it can fit into a variety of set-ups. As it has an adjustable roller lever actuator, this versatile device allows you to adjust the length of the lever so you can install it to fit your machine. Thanks to its double-insulated plastic housing material, the switch provides robust protection against electrical hazards.

Features & Benefits

• Hinged cover for easy wiring access
• Broad operating temperature range of -10°C to +80°C for use in harsh environments
• Snap-action operation type means it reacts quickly to any detected movement for fast response times
• Maximum current consumption of 10A for energy efficiency
• IP66 (ingress protection) rating offers total protection from dust and high-pressure water jets

Applications

• Aerial and platform lifts
• Material handling applications

How do I mount this limit switch?

This limit switch comes with mounting screws and holes to save you time and effort during installation. It's designed for mounting in a vertical position.

Approvals

UL/ UL listed for Canada

Honeywell Sensing and Control - GLLA01A2B

Datasheet

Application Note - Switches and Sensors

Installation Sheet - GLLA01A2B
