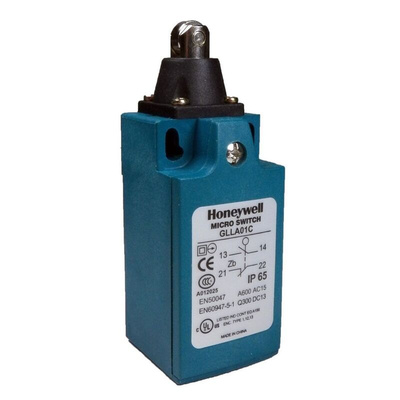

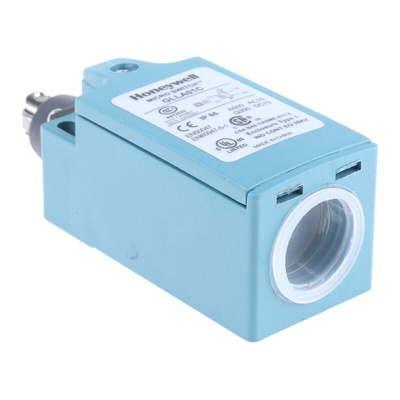

GLLA01C, Honeywell GLL Series Roller Plunger Limit Switch, NO/NC, IP66, SPDT, Plastic Housing, 300V ac Max, 10A Max

Limit Switches GLL

Galvanically isolated contacts
Double-insulated plastic housing
Contact block integral to switch housing
Hinge cover for easy wiring access

GLL series limit switches are part of the OEM set of miniature limit switches. The double insulated compact housing conforms to EN50047 and makes GLL switches ideal for mounting where space is at a premium. These products also feature direct opening normally closed circuits. The GLL limit switch series is available in a variety of actuator styles required for industrial applications. Designed to the IEC electrical standard, GLL is suitable for world-wide use and also meets globally accepted mounting standards. The GLL Series provides a cost-effective solution for high volume applications and enables users to reduce maintenace and repair costs.

Honeywell Plunger Limit Switch, 300V AC, 250V DC - GLL Series - GLLA01C

This Honeywell limit switch turns the electrical current on and off in your machine circuits. The three-component modular design consists of a terminal for wiring and fitting in place, a main switch body and an actuator head for operating the switch. Its actuator is a plunger type that pushes down to trigger the switch. The limit switch's compact dimensions of 30.5 (length) x 62 (width) x 31mm (depth) make it practical for installation in areas with limited space, as well as for producing short, controlled machine movements.

Features & Benefits

• Snap-action contacts for a fast switching response
• Removable hinge cover allows easy access to wires for testing and repair
• Wide operating temperature range of -10°C to +85°C for use in harsh industrial environments
• Robust mechanical lifespan of up to 5 million operations for long-lasting use

Applications

• Agricultural equipment
• Mobile cranes
• Machine tools
• Industrial doors
• Platform lifts

Can this limit switch withstand exposure to moisture and dust?

Yes. This limit switch's IP65 (ingress protection) rating means it's protected against dust and low-pressure water jets from any direction.

Approvals

UL/ UL listed for Canada
