33622A, Keysight Technologies 33600A Arbitrary Waveform Generator, 120MHz Max, 2-Channel, 1 μHz Min, Генератор сигналов

Keysight 33600A Series Trueform Waveform Generators

Keysight 33600A Series waveform generators with Trueform Technology offer greater capability, fidelity and flexibility than previous generation Direct Digital Synthesis (DDS) waveform generators. Purchasers can select the capabilities they want now and upgrade easily when needs change. Single-channel models 33611A 808-8685 and 33621A 808-8698 can be upgraded at any time by purchasing increased bandwidth to 120MHz, 336BW1U 808-8695 , and/or additional memory to 64M, 336MEM1U 809-0701 . Two-channel models 33612A 808-8689 and 33622A 808-8691 can be upgraded by purchasing increased bandwidth to 120MHz, 336BW2U 809-0708 , and/or additional memory to 64M, 336MEM2U 809-0705 . Additional upgrades available for purchase include: NISPOM and file security 336SECU 809-0714 , IQ baseband signal player to 2-channel arb 336IQPU 809-0717 .

High bandwidth pulse
Set leading and trailing edge independently
Provide standard PRBS patterns
2-channel coupling
Combining signals - sum two signals together
Trueform arbs - create up to 4 million samples standard
Low voltage settings
Band-limited noise

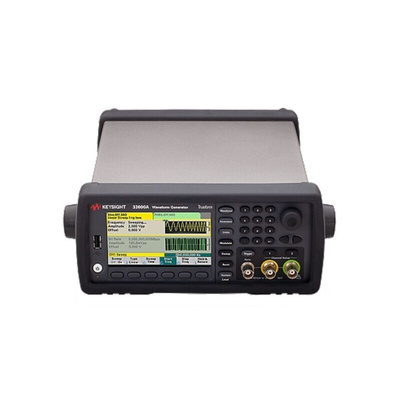

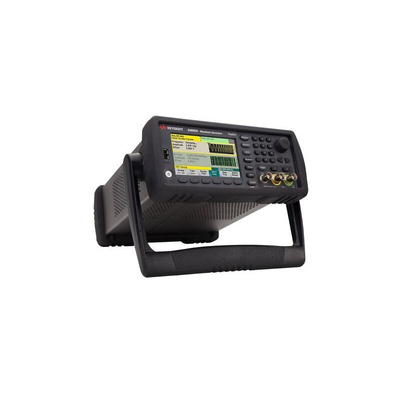

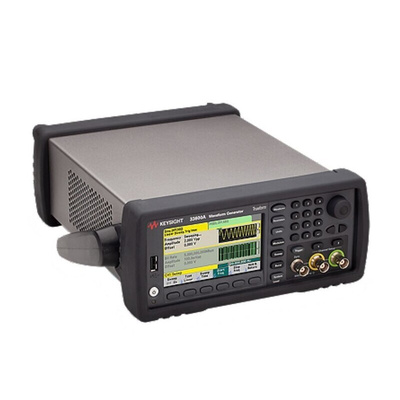

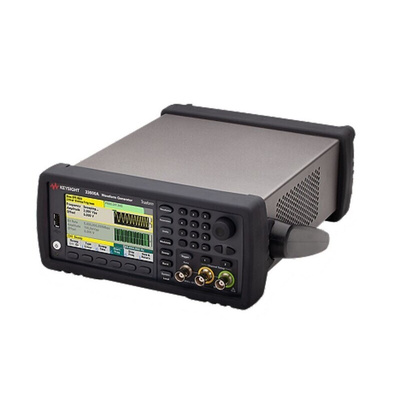

Keysight Technologies Arbitrary Waveform Generator, 2 Channels, 120MHz Bandwidth - 33600A Series - 33622A

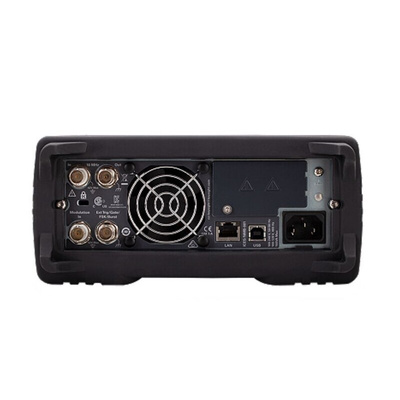

Use this arbitrary waveform generator from Keysight Technologies to generate accurate waveforms in testing applications. A typical crosstalk of less than -85dB means there's minimal interference, giving you a clear signal. Thanks to its low edge jitter of less than 1ps, you can ensure stable edges and accurate timing in your circuit setup. It has operating modes such as frequency sweep, modulation and gated burst, making it a versatile choice. This unit has built-in LAN, USB and GPIB ports for ease of connection and communication with other devices.

Features & Benefits

• Backlit graphical display for ease of use in low-light environments
• Includes FM, AM, PM, PWM, FSK, BPSK and sum modulation for versatility
• Bandwidth of 120MHz for testing medium to high-frequency components
• Wide operating temperature range between 0°C and +55°C for use in harsh conditions

Applications

• Instrumentation and control
• Telecommunications
• PCB manufacturing
• Robotics and automation

What's the advantage of Trueform technology?

Unlike DDS technology, Trueform doesn't skip points and offers anti-alias filtering, ensuring you get a highly accurate waveform.

Upgrade your bench - and get a free accessory or upgrade worth up to €530 / £450!
RS customers purchasing a qualifying power supply, DMM, DAQ, SMU or waveform generator will be eligible for one of the following free products: U1232A hand-held DMM, or a U1733C hand-held LCR meter, or a 11059A Kelvin probe set or a 34307A Thermocouple kit. Alternatively, customers purchasing a qualifying DMM or waveform generator can select the memory upgrade for that instrument instead. Customers must submit a claim and provide purchase information via the following webform: www.keysight.com/find/ChooseRewardClaim Offer valid for purchases from 01-Feb-2024 until 31-August-2024, claims will be accepted up to 90 days later, provided the qualifying products were purchased within the promotion period. Keysight will validate the purchase and arrange shipment to the customer. This promotion is offered to all customers in EMEAI excluding Israel.
