Keysight Technologies 33621A 33600A Arbitrary Waveform Generator 120MHz, Генератор сигналов

8088698
Номер производителя: 33621AПроизводитель: Keysight Technologies
Цена за шт.
1358700.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

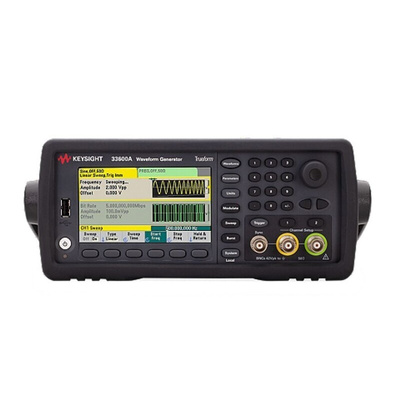

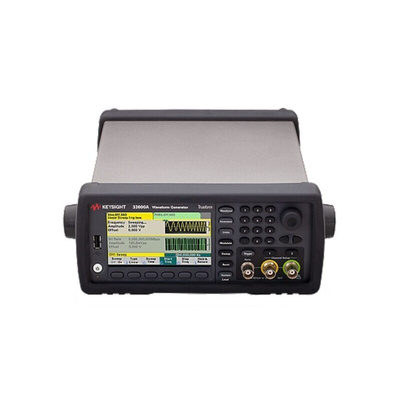

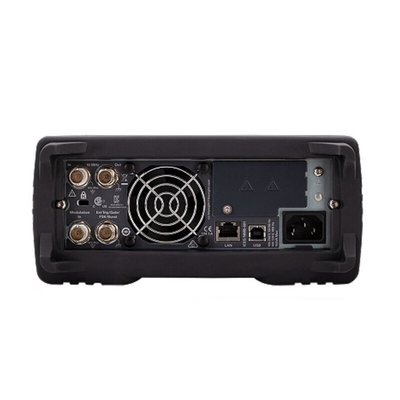

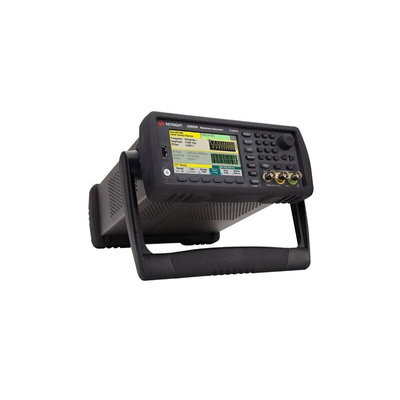

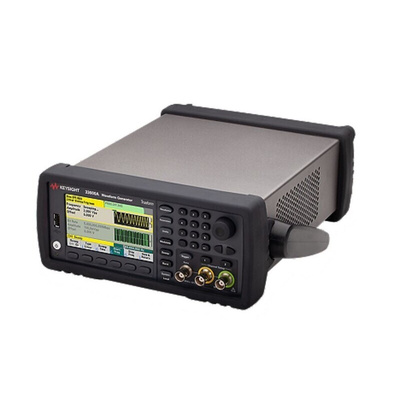

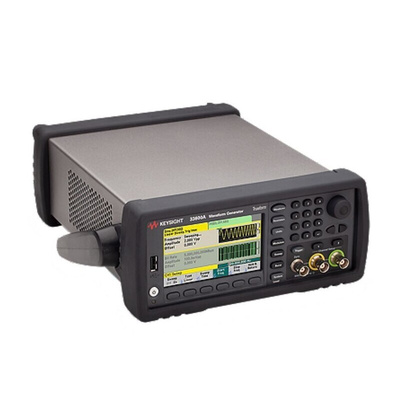

Keysight Technologies Waveform Generator

The Keysight Technologies 33600A series waveform generator is high tech, an arbitrary device that has 1 channel and supports frequencies up to 120MHz. It has superior signal integrity owing to the Trueform technology. The waveform generator has greater capability, fidelity and flexibility than previous generation direct digital synthesis (DDS) waveform generators. The user can select needed functionality from four new value-priced models, with the ability to upgrade later when your needs change. It offers superior user experience with an intuitive front panel, complimentary software and localized online help and access to manuals from mobile devices.

Features and Benefits

The supply voltage ranging from 100VAC to 240VAC
Up to 120MHz sine wave
Up to 100MHz pulse
1GSa/s sampling rate
14-bit amplitude resolution
Low phase noise of -125dBc/Hz
120MHz bandwidth
Low voltage settings
Band-limited noise
High bandwidth pulse
USB interface available
Set leading and trailing edge independently
Provide standard PRBS patterns
Combining signals or sum 2 signals together
Arbs with sequencing and up to 64MSa memory
1ps jitter which is 200 times better than DDS generators
5 times lower harmonic distortion than DDS generators
Compatible with Agilent BenchVue software
Low spurious distortion

Applications

Telecommunication
Electronics laboratories
Educational institutes
Electronics designing
Service and maintenance

Certifications

CE certified
cCSAus certified
ISO 9001:2008 certified

Техническая спецификация
pdfAgilent 33600A Series Trueform Waveform Generators Data Sheet
pdfAgilent 33600A Series Trueform Waveform Generators Product Fact Sheet
pdfContains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4
Ввод данных:
Клавиатура
Вес:
3.5кг
Взлет-Падение Времени:
2.9нс
Входы:
Modulation In, Reference In, Trig In
Высота:
103.8мм
Длина:
303.2мм
Импульсное разрешение:
4Digit
Максимальная амплитуда выходного сигнала:
20В Pk-Pk
Максимальная частота:
120МГц
Максимальная частота выборки:
4Msps
Максимальная частота треугольных сигналов:
800кГц
Минимальная длительность импульса:
5нс
Минимальная задержка импульса:
2.9нс
Минимальная частота:
1 мкГц
Минимальная частота треугольных сигналов:
1мкГц
Модель р:
33600A
Рабочая температура - максимальная:
+55°C
Рабочая температура - минимальная:
0°C
Развертка:
Линейный, Логарифмический
Размеры:
303.2 x 261.1 x 103.8мм
Разрешение:
4 знака
Сигналы произвольной формы:
Да
Тип дисплея:
4.3 in TFT
Тип интерфейса:
USB
Тип коннектора:
BNC
Ширина:
261.1мм
