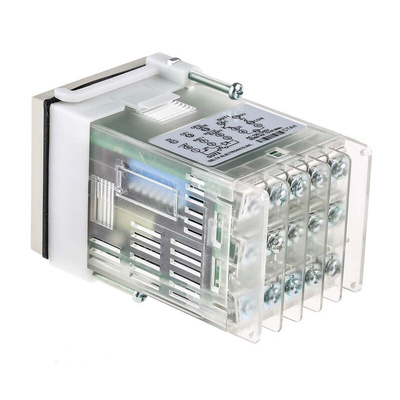

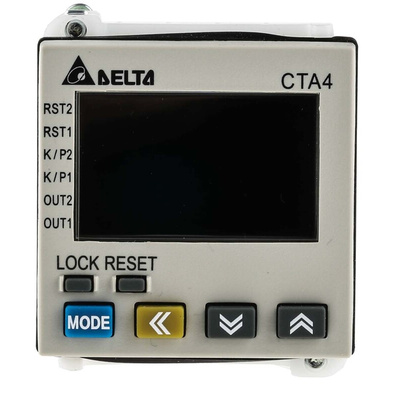

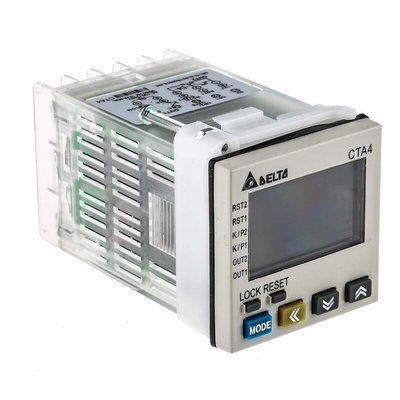

CTA4100A, Delta Electronics Counter, 6 Digit, 10kHz, 100 → 250 V, Счетчик

Delta Digital Counter

The Delta CTA series digital counter is a 3-in-1 panel mount product that includes a timer, counter, and tachometer. This counter has a voltage input and output device. It also has a 6-digit LCD display and it offers voltage input (PNP) or non-voltage input (NPN) ranging between 100VAC and 240VAC. The counting can be conducted in a millisecond, second, minute, minute/second, and hour/minute/second. The two types of outputs can be enabled concurrently. Output 1 contains relay output and transistor output whereas output 2 is a relay (SPDT, 250Vac, 5A max). This counter has a maximum count frequency of 10KHz.

Features and Benefits

Two preset stage
Pre-scale function allows the input pulses to be displayed in their actual units
Counting speeds maximum is 10K cps
Offers total counting and batch counting
“Reset” and “lock” keys for more convenient use
Decimal point setup available
Offers easy DIP switch setup
Front dimensions 44.8mm x 44.8mm
Plug-in screw terminal connection
Operating temperature ranges between 0°C and 50°C

Applications

Industrial counting applications
Control and monitoring systems
Batch counting
Length measurement
Position control
Rotation speed

Certifications

IP65 rated
