RS PRO Uninsulated Ring Terminal, 8.4mm Stud Size, 16mm² to 16mm² Wire Size, Обжимные контакты

RS PRO Uninsulated Ring Terminal, 8.4 mm Stud Size, 16 mm² to 16 mm² Wire Size

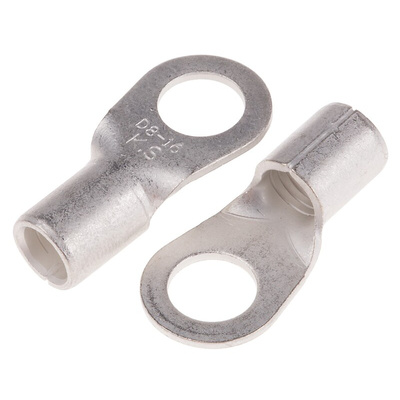

To create a strong connection between wires and a connecting point, use this RS PRO copper ring terminal with a brazed seam. Its copper contact material is extremely conductive, ensuring reliable connections. It's also highly durable, so it will last a long time. As it's an uninsulated type terminal, it can be used in areas where a solder junction is required. This feature improves the product's heat resistance, which aids in the prevention of short circuits.


This ring terminal is simple to install as it just requires a crimper. You'll commonly find this product used for wiring in control systems and industrial machinery.

Features and Benefits

• Copper contact material


• Inner ring diameter of 8.4 mm


• Uninsulated


• Maximum wire size of 6 AWG (American Wire Gauge)


• Maximum wire size of 16 mm² (metric)


• Minimum wire size of 6 AWG (American Wire Gauge)


• Minimum wire size of 16 mm²


• Outer ring diameter of 14 mm


• Overall length of 22 mm


• Stud size of 8.4 mm


• Thickness of 1.2 mm

Small Pack Size

Per Unit, RS stock no: 809-2296

Large Pack Size

RS stock no: 270-7477

RS Pro Datasheet
