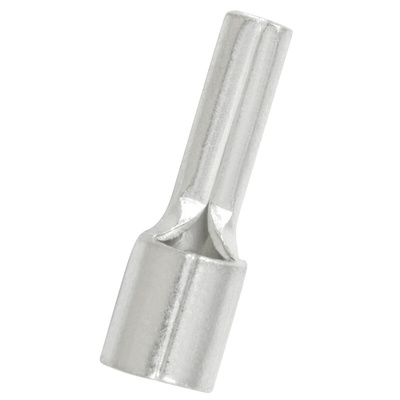

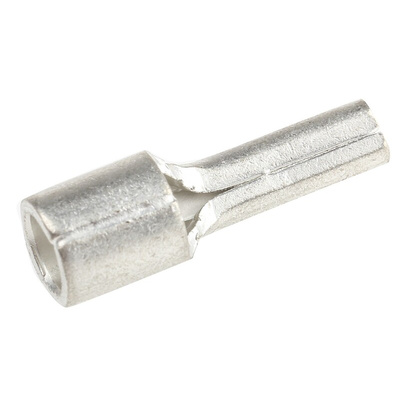

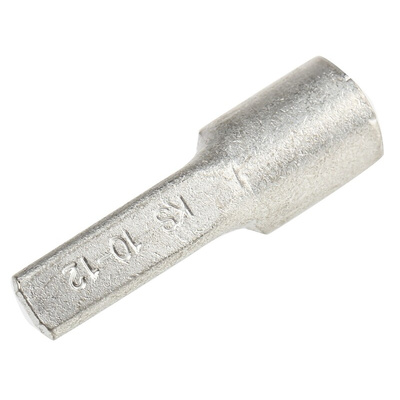

RS PRO Uninsulated, Tin Crimp Pin Connector, 10mm² to 10mm², 8AWG to 8AWG, 4.3mm Pin Diameter, 14mm Pin Length, Silver

RS PRO Uninsulated Crimp Pin Connector, 10 mm² to 10 mm², 8 AWG to 8 AWG, 4.3 mm Pin Diameter, 14 mm Pin Length

Need reliable crimp-pin connectors? You can use these RS PRO connectors to terminate open wires by inserting them into the pins' terminals. This means that you'll save time, as you won't need to solder. They're commonly used in industrial and military applications because of their durability and flexibility.
These units are made from copper with a brazed seam to ensure they're durable and resistant to corrosion. This material also guarantees they have excellent electrical conductivity, so you'll know you can rely on your connections.
The connector pins are handled and packed in accordance with American (ANSI/ESD S20.20:2014) and British (BS EN 61340-5-1:2007) electrostatic discharge (ESD) requirements, so you can rest assured the risk of an electrostatic discharge has been reduced. They also conform to Restriction of Hazardous Substances (RoHS) criteria so contain only minimal amounts of any harmful materials.

Features and Benefits

• Copper contact material
• Uninsulated
• Maximum wire size of 8 AWG (American Wire Gauge)
• Maximum wire size of 10 mm²
• Minimum wire size of 8 AWG (American Wire Gauge)
• Minimum wire size of 10 mm²
• Overall length of 22 mm
• Pin diameter of 4.3 mm
• Pin length of 14 mm
• Unshrouded

Small Pack Size

Per Unit, RS stock no: 809-2357

Large Pack Size

RS stock no: 270-7616

RS PRO Datasheet
