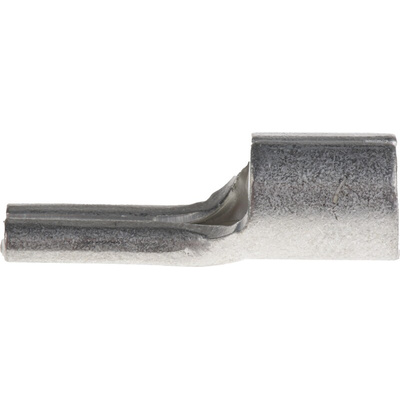

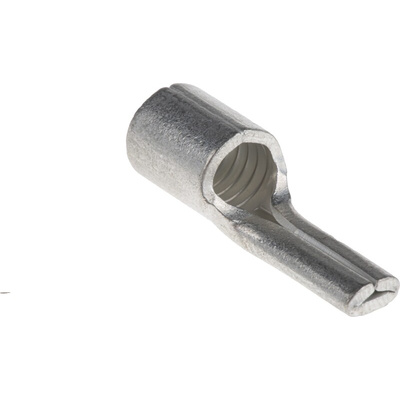

RS PRO Uninsulated, Tin Crimp Pin Connector, 16mm² to 16mm², 6AWG to 6AWG, 5.5mm Pin Diameter, 16mm Pin Length, Silver

RS PRO Uninsulated Crimp Pin Connector, 16 mm² to 16 mm², 6 AWG to 6 AWG, 5.5 mm Pin Diameter, 16 mm Pin Length

When you need dependable crimp-pin connectors, choose these connectors from RS PRO. They can be used to terminate open wires by putting them into the terminals of the pins, saving you time and effort by eliminating the need to solder. Thanks to their toughness and flexibility, they're commonly used in industrial and military applications.


These units are made of copper with a brazed seam to enhance durability and corrosion resistance. This material also ensures good electrical conductivity for a reliable connection.


The connector pins are handled and packed in compliance with electrostatic discharge (ESD) requirements in the United States (ANSI/ESD S20.20:2014) and the United Kingdom (BS EN 61340-5-1:2007), so you can be certain that the risk of electrostatic discharge is minimal. They also meet Restriction of Hazardous Substances (RoHS) standards, which means they contain only trace levels of any harmful materials.

Features and Benefits

• Copper contact material


• Uninsulated


• Maximum wire size of 6 AWG (American Wire Gauge)


• Maximum wire size of 16 mm²


• Minimum wire size of 6 AWG (American Wire Gauge)


• Minimum wire size of 16 mm²


• Overall length of 26 mm


• Pin diameter of 5.5 mm


• Pin length of 16 mm


• Unshrouded

Small Pack Size

Per Unit, RS stock no: 809-2366

Large Pack Size

RS stock no: 270-7617

RS PRO Datasheet
