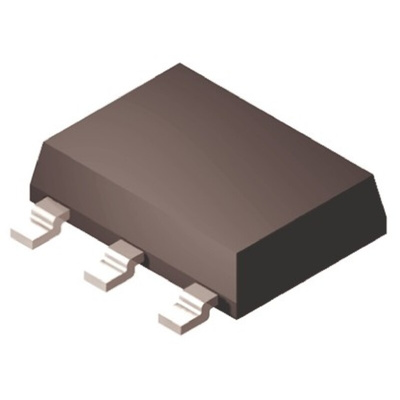

Texas Instruments TLV1117-33IDCY, 1 Low Dropout Voltage, Voltage Regulator 800mA, 3.365 V 3+Tab-Pin, SOT-223, Регулятор напряжения

LDO (Low Dropout) Linear Voltage Regulators, 600mA to 800mA, Texas Instruments

The Texas Instruments TLV1117 device is a positive low-dropout voltage regulator designed to provide up to 800 mA of output current. The device is available in 1.5-V, 1.8-V, 2.5-V, 3.3-V, 5-V, and adjustable-output voltage options. All internal circuitry is designed to operate down to 1-V input-to-output differential. Dropout voltage is specified at a maximum of 1.3 V at 800 mA, decreasing at lower load currents.

1.5-V, 1.8-V, 2.5-V, 3.3-V, 5-V, and
Adjustable-Output Voltage Options
Output Current of 800 mA
Specified Dropout Voltage at Multiple
Current Levels
0.2% Line Regulation Maximum
0.4% Load Regulation Maximum

LDO (Low Dropout) Linear Voltage Regulators, Texas Instruments

A range of Texas Instruments Low Dropout (LDO) Linear Voltage regulators. LDO voltage regulators are able to operate with a small input-output differential making them suitable for a variety of applications where conventional regulators would be unsatisfactory. The latest generation of LDO regulators offers low quiescent current levels and reduced output noise together with excellent line voltage regulation and high PSRR.
