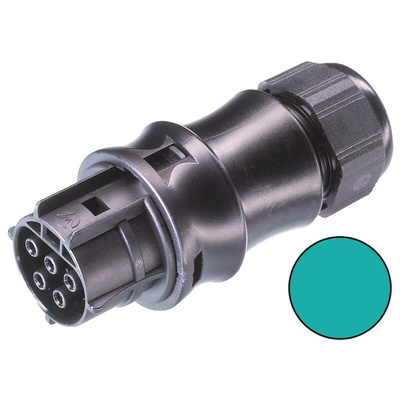

96.051.4153.6, Wieland RST20i5 Series Circular Connector, 5-Pole, Female, Cable Mount, 20A, IP68

Wieland Gesis® RST20i5 Cable Mount Circular Connectors

The RST Series by Wieland has four series available, offering a complete electrical installation system to meet different requirements. All connectors are fitter-friendly and offer flexible and easy installation, to minimise incorrect connections. The RST classic series has a modular design for a range of standard applications. Suitable for outdoor and harsh environments in industrial and plant, construction sites and solar power systems.

Features and Benefits

• The RST Classic series offers four variants including three versions for standard voltage ratings of 250/400V and one version for extra low voltages of 50/120V


• Connectors are cable mount with 1 connection for each pole


• Connectors are mechanically coded meaning only associated male and female pairs will connect with the correct polarity


• Connectors lock together and are self-locking

Applications and Uses

• Electrical installations


• General network applications


• Switching applications


• Multiphase systems

Approvals

CSA, DVE, UL

RST20i5 Lighting Connector

• Female straight angle connector
• For cable diameter 10 – 14 mm
• Solid cable wire size between 0.75 to 4 mm²
• Stranded cable wire size between 0.75 to 4 mm²
• Rated current of 20A and rated voltage of 250V
• Five pole, turned contacts with screw connection
• Turquoise blue coding
• IP66/68 degree of protection
