96.052.4153.1, Wieland RST20i5 Series Circular Connector, 5-Pole, Male, Cable Mount, 20A, IP68

Wieland Gesis® RST20i5 Cable Mount Circular Connectors

The RST Series by Wieland has four series available, offering a complete electrical installation system to meet different requirements. All connectors are fitter-friendly and offer flexible and easy installation, to minimise incorrect connections. The RST classic series has a modular design for a range of standard applications. Suitable for outdoor and harsh environments in industrial and plant, construction sites and solar power systems.

Features and Benefits

• The RST Classic series offers four variants including three versions for standard voltage ratings of 250/400V and one version for extra low voltages of 50/120V


• Connectors are cable mount with 1 connection for each pole


• Connectors are mechanically coded meaning only associated male and female pairs will connect with the correct polarity


• Connectors lock together and are self-locking

Applications and Uses

• Electrical installations


• General network applications


• Switching applications


• Multiphase systems

Approvals

CSA, DVE, UL

Wieland GST Connector

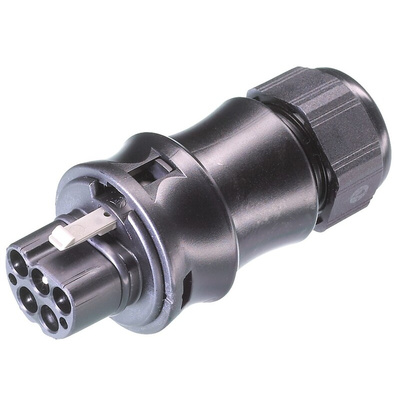

The Wieland GST connector is an RST20i5 series, male, 5-pole, one-way connector, cable mount, with strain relief. It has an electric rating of 20A and 400V. This female cable has 5 silver-plated brass terminals with screw termination and a capacity of 4mm^2 per pole for stranded or solid cable, polyamide mechanically coded housing material. Available in black colour.

Features and Benefits

• Crimp contacts separately available under accessories
• Pollution degree 3
• Rated impulse voltage 4kV
• Self lockable
• Unmounted with cable gland

Applications

• Construction sites
• Solar power systems
• Suitable for outdoor and harsh environments in industrial and plant

Certifications

• CSA
• DVE
• IP66 rated
• IP68 rated
• IP69 rated
• UL listed
