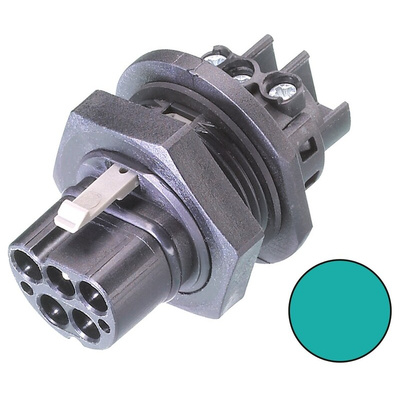

96.052.5053.6, Wieland RST20i5 Series Connector, 5-Pole, Male, 1-Way, Panel Mount, 20A, IP66, IP68, IP69, Разъем

Gesis® RST20i5 Panel Mount Circular Connectors

Wieland Electric gesis® RST20i5 range of male and female panel mount circular connectors in blue or black coding colours, with standard M25 mounting thread. Featuring 5 silver plated brass terminals with screw termination and a capacity of 4mm² per pole for stranded or solid cable, polyamide mechanically coded housing material and IP rating of up to IP69K and a rating of 20A 400V. Suitable for outdoor and harsh environments in industrial and plant, construction sites and solar power systems.

Polyamide Housing
5 Pole
Rated impulse voltage 4 kV
Up to IP69K rating
Screw termination

Approvals

DVE , UL

Gesis RST Connector Range

Gesis RST20i5 Panel Mount Circular Connectors
