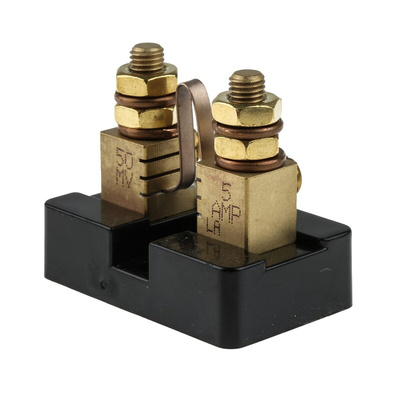

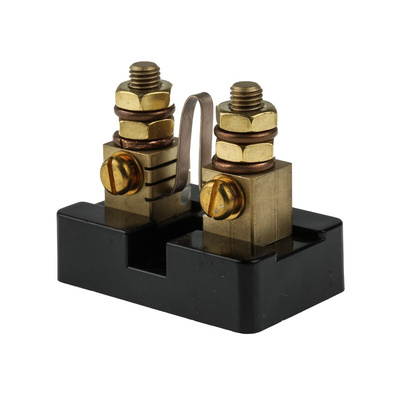

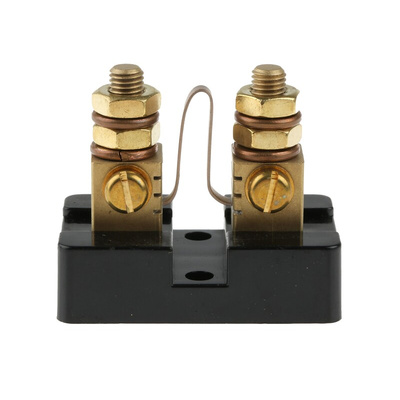

3020-01097-0, Murata Power Solutions Brass-Ended Shunt, 5 A Max, 50mV Output, ±0.25 % Accuracy, Шунт

Murata Power Solutions DC Shunt

The Murata Power Solutions DC shunt has an output voltage rating of 50mV at 5A. This precision shunt connects directly to the MPS DCA5-20PC series of DC ammeters. Its installation is straightforward
simply connect the load circuit to the shunt’s threaded studs and the shunt’s mV Kelvin-outputs to the digital ammeter’s input terminals. It features a rugged phenolic base that provides 750V isolation to the shunt’s brass terminals, allowing direct attachment to metal surfaces.

Features and Benefits

Power supply is 3A,12VDC
Power consumption is less than 25W
Maximum resolution of 1920(H) x 1080(V)
Plastic case
Response time is 5 milliseconds
Active display area of 434.88mm(H) x 238.68(V)mm
Viewing angle is 178?/178? (H/V)
Video Interface of 1x BNC Composite In, 1x BNC, Composite Out, 1xVGA and 1xHDMI
Audio interface is 1x PC audio
Display colours of 16.7M
Operating temperature ranges between -10°C and 50°C

Applications

Audio video systems
Cyber hubs

Datasheet
