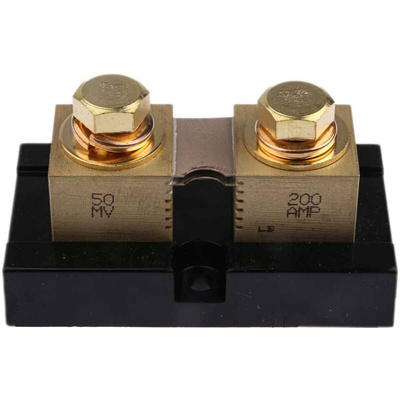

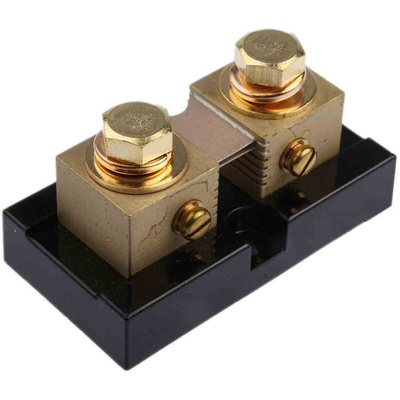

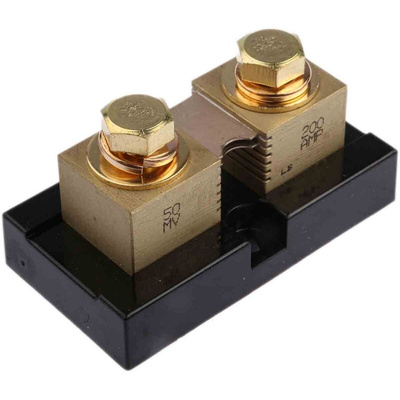

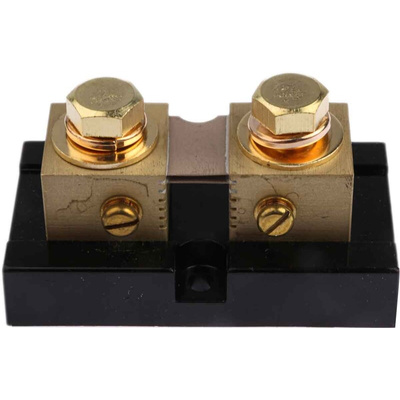

3020-01101-0, Murata Power Solutions Brass-Ended Shunt, 200 A Max, 50mV Output, ±0.25 % Accuracy, Шунт

Murata Power Solutions DC Shunt

The Murata Power Solutions DC shunt has an output voltage rating of 50mV at 200A. This precision shunt connects directly to the MPS DCA5-20PC series of DC ammeters. Its installation is straightforward

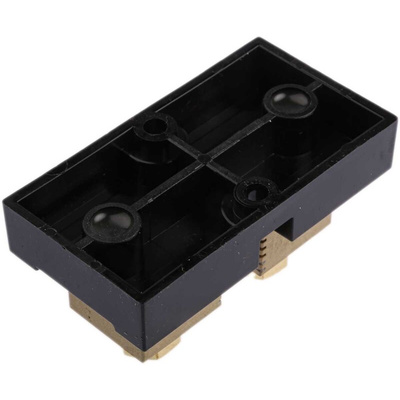

simply connect the load circuit to the shunt’s threaded studs and the shunt’s mV Kelvin-outputs to the digital ammeter’s input terminals. It features a rugged phenolic base that provides 750V isolation to the shunt’s brass terminals, allowing direct attachment to metal surfaces.

Features and Benefits

High precision with ±0.25% accuracy
Resistance is 0.0005ohm
Manganin sensing element
Base mount
Operating temperature ranges between -40°C and 60°C

Applications

Internet networking
Telecommunication
