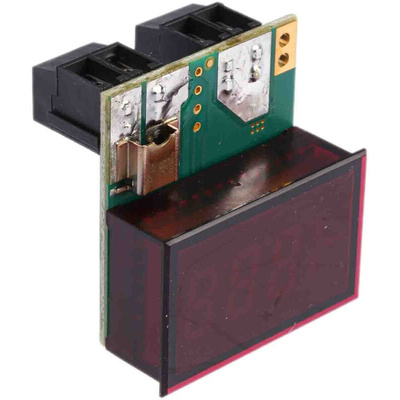

DCA-20PC-6-DC1-RL-C, Murata Power Solutions Murata Digital Ammeter DC, LED Display 3.5-Digits ±0.15 %, Амперметр

Murata Power Solutions DC Ammeter

The Murata Power Solutions DC Ammeter is the first Digital device to include built-in shunts for measuring DC currents up to 20A. It provides six built-in shunts for digitally precision measuring of DC from 200uA to 20A. This Ammeter is 100% self-contained and has no calibration or user-supplied components are required. It even includes terminal blocks for external load circuit, a feature that enables simple 3-wire operation. It has an operating supply voltage of 40VDC and operating supply current of 10mADC.

Features and Benefits

Built-in shunts for digitally measuring dc currents from 200uA to 20A
Cut-out height is 21.29mm
Cut-out width is 33.93mm
Depth is 26.4mm
Full scale load current is 19.99ADC
High resolution, factory calibrated to ±0.1% accuracy
Includes load connections for easy 3-wire or 4-wire operation
Internal shunt of 20mV minimizes power loss
Internal shunt resistance is 0.001ohms
Isolated-supply models for high-side shunts ranges between 8VDC and 36VDC
Meter accuracy is ±0.15 %
Number of digits are 3.5
Operating temperature ranges between 0°C and 60°C
Wide power supply inputs are 5VDC to 40VDC for 5V/12/24V/28V applications and 36V to 75V option for telecom supplies

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

DCA-20PC Series Datasheet
