DMR20-10-DCM-R-C, Murata Power Solutions Digital Voltmeter DC, LED Display 4-Digits ±0.06 V, ±0.4 V, Вольтметр

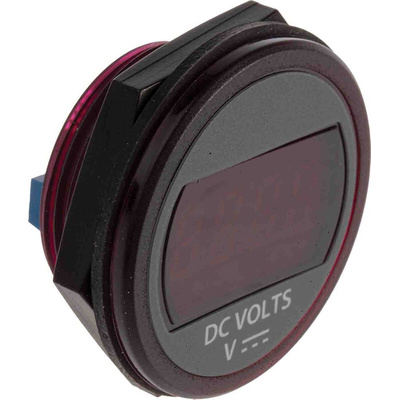

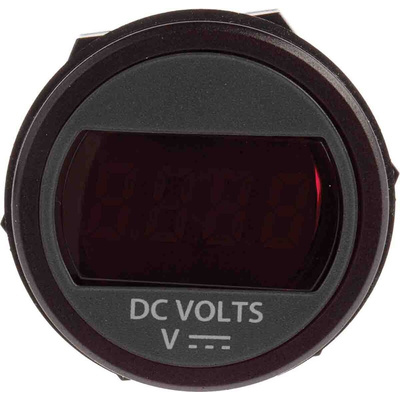

Murata Power Solutions Digital Voltmeter

The Murata Power Solutions digital voltmeter is a self-powered, auto-ranging, DC voltage monitor used to measure and display the outputs. Its large, 0.30in/7.6mm, bright LED displays are easily readable from 10ft away (3m). This auto-ranging meter accurately displays DC voltages with 0.01V in the LO range (below 51V), or 0.1V resolution in the HI range (above 51 V). A built-in, resettable fuse assures long term reliability. It employs a 13-bit, A/D converter and precision metal-film resistors to achieve outstanding performance. It is housed in a rugged, round, polycarbonate case that provides excellent protection against moisture, dust, shock and vibration. Its full-scale reading is 200VDC and supply voltage ranging between 6VDC to 75VDC.

Features and Benefits

Fully operational
Self-powered, requires only 2 connections
Installs in round “oiltight” 1.20in (30.5mm) cut-outs
Reverse polarity protected to 100VDC
4-digit LED display with overvoltage indication
Digital replacement for analogue panel meters

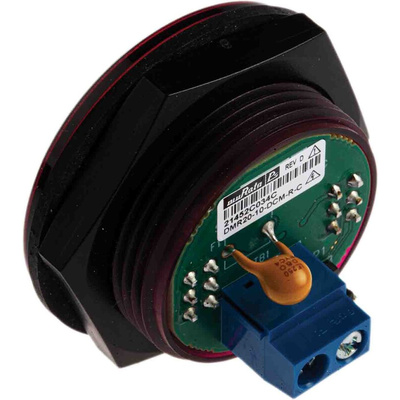

Screw-style terminal block simplifies installation
Self-resetting internal fuse for long-term reliability
Supplied with EPDM rubber gasket and plastic hex nut
Panel knockout punches and tooling available
Operating temperature ranging between -25°C and 60°C

Certifications

IP67/NEMA6 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Datasheet
