DMR20-1-ACV-R-C, Murata Power Solutions Digital Voltmeter AC, LED Display 4-Digits ±2 V, 30.73 Dia. mm, Вольтметр

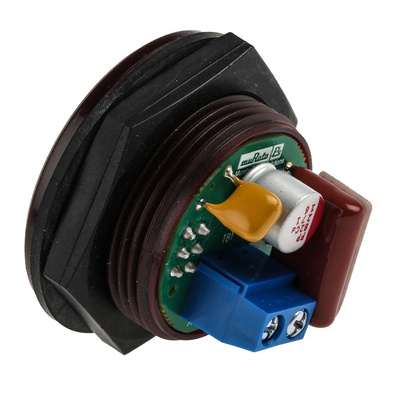

Murata Power Solutions Digital Voltmeter

The Murata Power Solutions digital voltmeter is a self-powered, auto-ranging, DC voltage monitor used to measure and display the true-RMS value of the AC power system. The units measured are distorted, AC power sources including triangle, square and the quasi-sine output, of many DC to AC power inverters. Its large, 0.30in/7.6mm, bright LED displays are easily readable from 10ft away (3m). This meter accurately displays AC voltages with 0.1V resolution. A built-in resettable fuse assures long term reliability. It employs a 13-bit, A/D converter and precision metal-film resistors. This voltmeter is housed in a rugged, round, polycarbonate case that provides excellent protection against moisture, dust, shock and vibration. Its supply voltage ranging between 85VAC and 264VAC.

Features and Benefits

Self-powered directly from the AC supply
Installs in “oiltight”1.20in (30.5mm) round cut-outs
4-digit LED display with overvoltage indication
Knockout punches and tooling available
Digital replacement for analogue panel meters
Screw-style terminal block simplifies installation
Self-resetting internal fuse for long-term reliability
Supplied with EPDM rubber gasket and plastic hex nut
Operating temperature ranging between -25°C and 60°C

Certifications

IP67/NEMA6 rated
UL approved
cUL approved
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
