DMS-20PC-1-LM-B-C, Murata Power Solutions Digital Voltmeter AC, LED Display 3-Digits ±2 V, 33.93 x 21.29 mm, Вольтметр

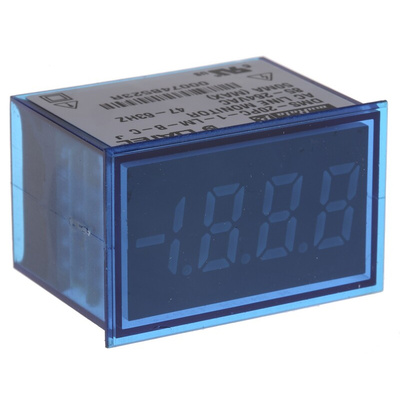

DMS-20PC-1-LM - Self-Powered LED AC Voltage Monitor

The digital panel voltmeter DMS-20PC-1-LM is a component-size, self-contained, low-cost ac voltmeter for true line measurements. It requires no additional components or auxiliary power. Simply plug it into any wall outlet and instantly read voltages from 85 to 264 Vac.
DMS-20PC-1-LM employs half-wave sinusoidal averaging (RMS calibrated) and has a display resolution of 1 Vac over its full input range. Packaged in a red-filter case with built-in bezel, the meter is fully encapsulated for ruggedness. The unit is overvoltage protected to 300 Vac.
This low-cost meter is ideal for industrial, laboratory, office and field-service applications. Its miniature size is perfect for design into high-end consumer electronics, laboratory instrumentation and other products requiring accurate ac line monitoring.

Digital AC voltmeters with a large 9.4 mm blue LED display
Input voltage ranges is 85-264 Vrms
Half-wave averaging, RMS calibrated
Self-powered, only two connections required
Subminiature size with 35x22.4x25.4 mm
Plugs directly into USA-style wall outlets
Screw terminals for panel mounting
Fully encapsulated for harsh environments

Murata Power Solutions Series

Datasheet
