ACM3P-4-AC1-G-C, Murata Power Solutions Murata LED Digital Panel Multi-Function Meter for Current, 22.1mm x 36.22mm, Многофункциональный измеритель

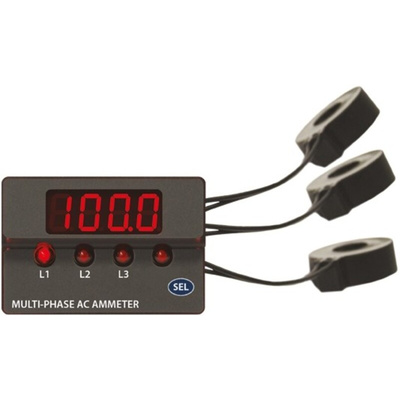

ACM3P - Three-Phase AC Ammeters

ACM3P series 3-phase AC ammeters measure and display the true-RMS values of 2- or 3-phase ac mains current. A front panel touch switch enables the selection of a continuous reading of any of the three phases. All ACM3P ammeters are functionally complete, with built-in L1, L2 and L3 current transformers, no other user-supplied components or hardware are required.
Their miniature size is ideal for UPS backup power sources, power strips, alternative energy metering, and any other applications that require precise monitoring of 2- or 3-phase ac current.

Large 9.2mm, bright LED display
Available in red, green, or blue displays with phase annunciators
Measure and display the true-RMS current of 3-phase power systems
Universal 85-264Vac (47-63Hz) operating supply range
Three built-in current transformers measure up to 100A per phase
Ideal for power distribution units (PDUs) and backup power systems
One-piece polycarbonate housing fits “0U” and “1U” rack spaces
Low-profile surface mount design occupies minimal behind-the-panel space

Murata Power Solutions Series

Datasheet
