216503 M22-AK01, Eaton RMQ Titan M22 Series Contact Block, 500V, 1NC, Контактный блок

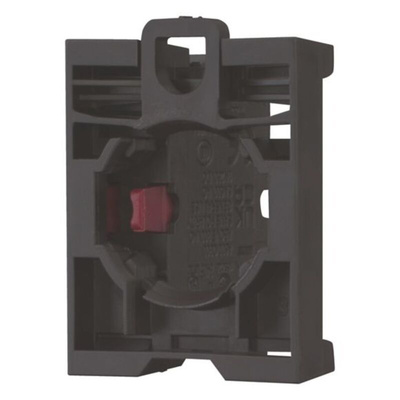

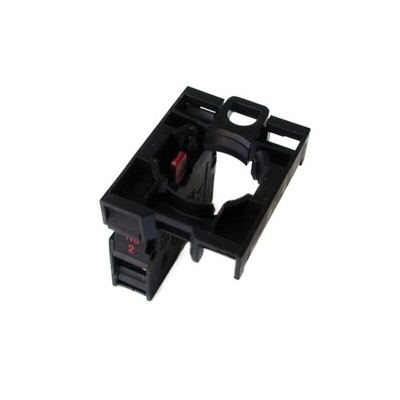

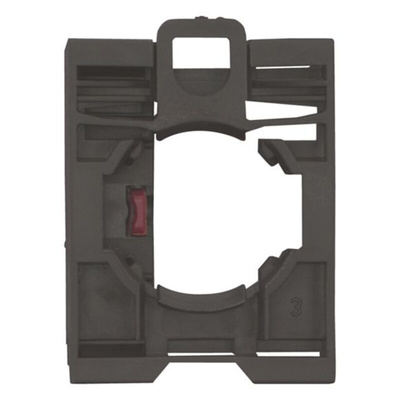

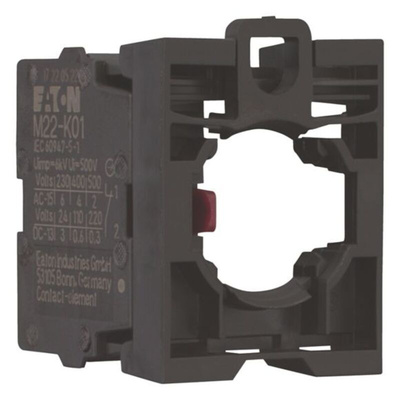

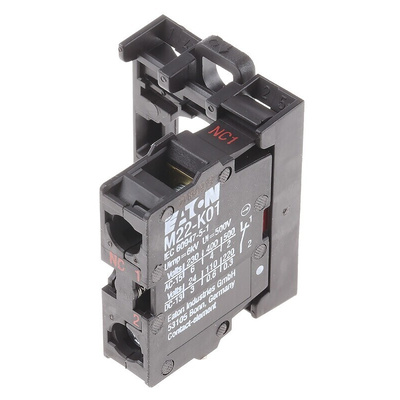

Eaton RMQ Titan Contact Block and Holder, Front Fixing Type, 4A Current Rating - RMQ-Titan / M22 Series - 216503 M22-AK01

Take charge of your switching equipment with this NC contact block and holder from Eaton. When an attached relay is active, this nifty component lets current flow through the assembly, so you can turn the circuit on or off. Thanks to a broad operating temperature range between -25°C and +70°C, you can rely on it to get the job done, even in challenging settings. Its rated insulation voltage of 500V assures you it's safe to use in powerful electrical systems. Units like this one are commonly found in industrial applications, from construction equipment to marine technology.

• Fixing collar allows for quick mounting of a compatible actuator
• IP20 rating indicates it's touch-proof and protected against tools and wires larger than 12mm
• Mechanical lifespan of more than 5 million operations, for long-term use
• Screw connection makes setup simple and speedy

What wire sizes can I use this contact block with?

You can wire this versatile unit using conductors with surface areas ranging between 0.5 and 2.5mm².

Does this block withstand high impulse voltages?

Yes, it's voltage-tested up to 6000V AC for protection against unplanned power surges.

Note

Eaton formerly known as Moeller

Datasheet - Eaton M22-AK01

Instruction Sheet - M22 Series

Catalogue - Product Range
