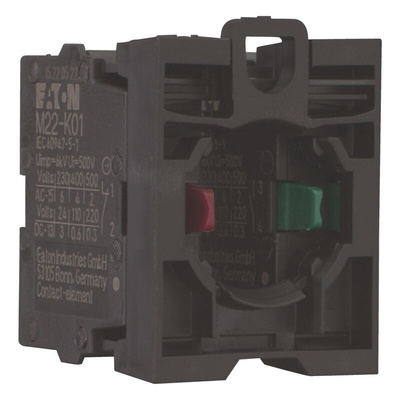

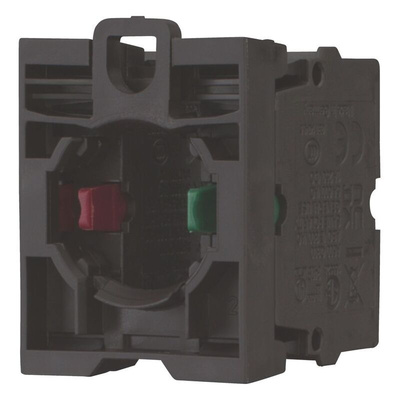

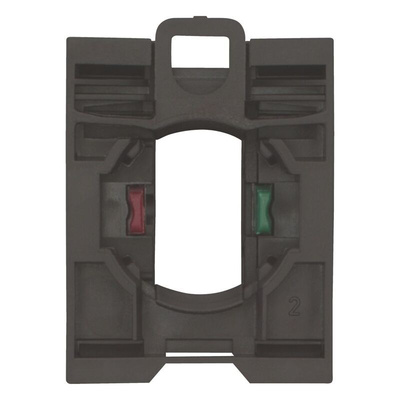

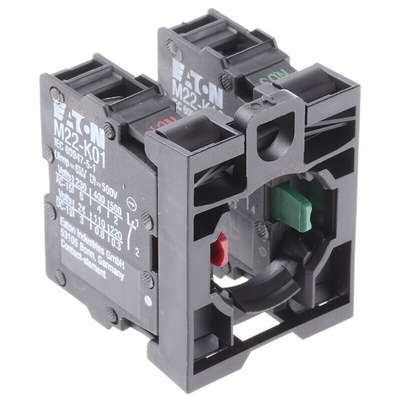

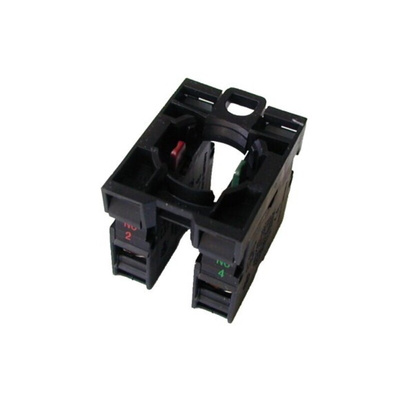

216505 M22-AK11, Eaton RMQ Titan M22 Series Contact Block, 500V, 1NO + 1NC, Контактный блок

Eaton RMQ Titan Contact Block and Holder, Front Fixing Type, 4A Current Rating - RMQ-Titan / M22 Series - 216505 M22-AK11

Need a handy solution for starting and stopping your electrical device? Choose this contact block and holder from Eaton. It's at home in high-power industrial automation and power supply applications, thanks to its 500V voltage rating. And as it can withstand up to 6000V for short periods, it protects your equipment from damage in the event of hazardous power surges. Straightforward screw terminals mean you won't need specialist tools to connect it to your circuit – just reach for your favourite screwdriver. This unit accommodates solid wires with a diameter between 0.75 and 2.5mm², so it's a versatile option.

Features & Benefits

• Handles -25°C to +70°C operating temperatures
• Fixing collar included for ease of setup
• Delivers up to 3,600 operations per hour, to support demanding applications

What's the mechanical lifespan of this product?

The unit keeps going for over 5 million operations, ensuring a long service life.

Does this unit have ingress protection?

An IP20 rating means it's touch-proof, for safe handling, and wires or tools bigger than 12mm can't damage it.

Note

Eaton formerly known as Moeller

Datasheet - Eaton M22-AK11

Brochure - RMQ Titan

Catalogue - Motors Starters, Contactors
