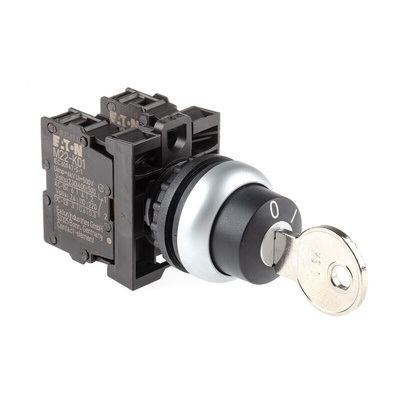

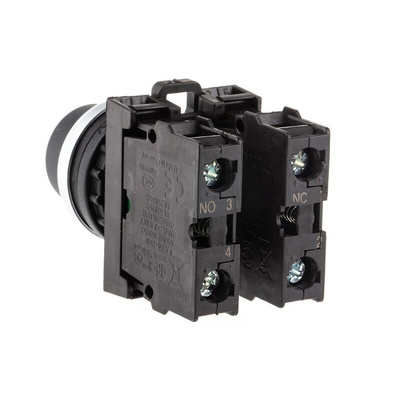

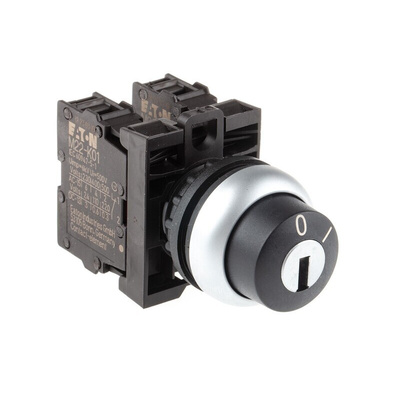

216517 M22-WRS/K11, Eaton IP66 Key Switch, SPDT 2-Way

Eaton Key Switch, Screw Termination, 60° Key Index Angle - RMQ-Titan / M22 Series - 216517 M22-WRS/K11

Protect your machinery from accidental activation using this key switch from Eaton. The switch needs a key to activate or deactivate an attached machine, which stops unauthorised personnel from tampering with sensitive equipment. Its ON and OFF positions are clearly marked, making it simple to operate. As the plastic body is resistant to corrosion and impact, this is a durable option for use in harsh environments. Screw terminals make it fast and simple to install without the need for specialised tools. You'll find switches like this one in server cabinets and fire alarm systems.

Features & Benefits

• Cutout diameter of 22mm for installation on standard panels
• Wide operating temperature between -25°C and +70°C for use in challenging conditions
• Mechanical lifespan of over 100,000 operations for long-lasting performance
• Key is removable in on position

Can I install this key switch in humid environments?

This key switch has an IP66 rating, meaning it's dust-proof and resistant to high-pressure water jets. This means you can rely on it in humid or damp environments.

Note

Eaton formerly known as Moeller

M22-WRS/K11 Datasheet

Instruction Sheet - 216517 M22-WRS/K11

Line Drawing - 216517 M22-WRS/K11
