440G-LZS21SPRH, Allen Bradley Guardmaster 440G-LZ Series Solenoid Interlock Switch, Power to Unlock, 24V dc, Actuator Included

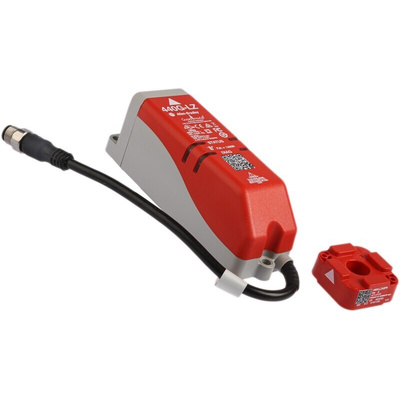

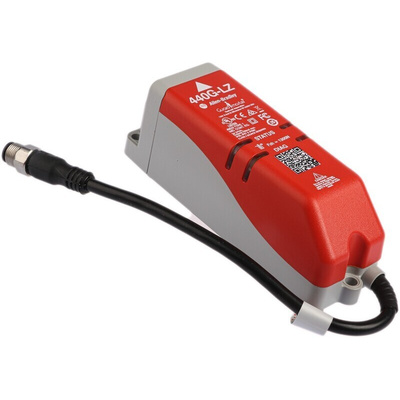

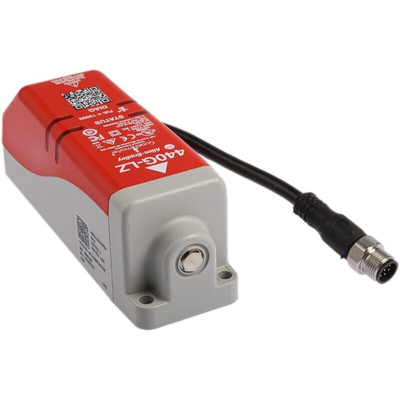

Allen Bradley Guardmaster 440G-LZS21SPRH Solenoid Interlock Switch

For advanced, dependable guard-locking the 440G-LZS21SPRH Solenoid Interlock Switch by Allen Bradley Guardmaster is the perfect solution for your safety system. This innovative safety switch is expertly designed for use on partial body access guard doors. It restricts access to unsafe areas for personnel by ensuring that the machine barrier can only be opened when machinery has come to complete stop. The 440G-LZ provides superior protection for machine operators to keep your processes running efficiently and ensure peace-of-mind.

The high-tech 440G-LZ switch has efficient microprocessor technology with an RFID coded actuator. It features a secure locking bolt drive mechanism that only locks when it detects the correct actuator. It holds the highest level of safety for door position and lock monitoring as it is TÜV certified to Ple, Cat. 4 (EN/ISO 13849-1). The 440G-LZ uses only 2.5W, making it a highly energy-efficient green solution. It also supports both hinged and sliding doors with four directions of approach.

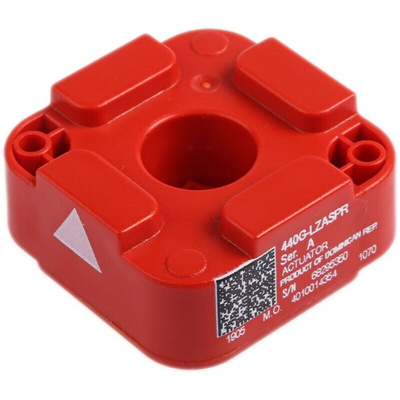

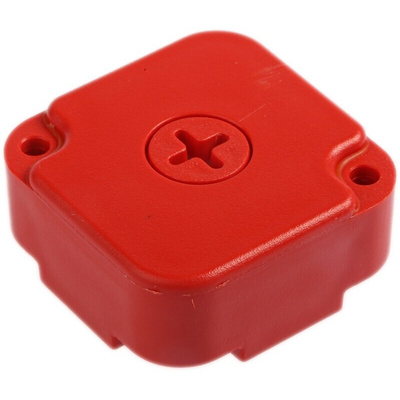

The 440G-LZS21SPRH safety interlock switch is Power-to-Release, with 2 x PNP (0.2A max) safety contacts, 1 x PNP (0.2A max) auxiliary contact. It has an RFID standard (low level) actuator. Conduit entry is a 6-inch pigtail M12 8-pin Quick Disconnect, ensuring fast and easy wiring. Solenoid voltage is 24 V dc. This switch provides improved safety guard stability and security due to its high holding force of 1300N (292 lbs). The operating temperature range for this unit is 0 to +55 °C (+14 to +131 °F). This interlock switch also has monitored outputs and highly-visible LED diagnostics to help minimise downtime. The compact design ensures application flexibility and easy mounting, saving you time.

Features and Benefits:

• 270 degree wrap-around LEDs for fast diagnostics and troubleshooting, positioned on the front corners of the housing
• Hygienic design and high IP69K rating - dust-tight and can withstand powerful jets of water
• Reliable Type 4 interlocking unit with guard locking per ISO 14119 with low coded RFID actuator
• Convenient QR code on product links directly to on-line user manual
• Highly energy efficient due to bi-stable solenoid design and advanced algorithms, which ensure that it uses up to 60% less power compared to competitive switches
• Certified to PLe to ISO 13849-1 (both for barrier position and lock monitoring to ISO 14119)

Note: This unit can be used with GuardLink, a new safety linking technology from Allen Bradley Guardmaster. GuardLink simplifies and reduces the connection time of the safety system, whilst providing real-time diagnostic information over Ethernet IP. This makes it simple to identify the location of the device that has tripped the system, thus reducing downtime, and improving the machines overall efficiency. For more details, please go to the GuardLink brochure.

Applications:

Food and beverage
Pharmaceutical
Semiconductor industries

Certifications:

IEC 60947-5-3
IEC 60947-5-1
IEC 61508
EN ISO 13849-1
IEC 62061
ISO 14119
UL 508
IP69K rated
CE certified
cULus approved
TÜV certified
C-tick certified

Rockwell Automation is a global leader in industrial automation and digital transformation, and brings smart manufacturing to life. With a long legacy of creating Allen-Bradley® integrated control and information solutions, we help make you as productive as possible. Our portfolio of sensing, safety and motor control products can support your move towards smart machine applications. Allen-Bradley® IO-Link sensors are data-enabled and communicate with all field buses, providing diagnostic and health information about the device before a machine stops, and enabling quick production changeovers through fast parameter downloads from PLCs into the device. This reduces machine downtime and increases manufacturing OEE. For safety components, products with built-in diagnostics simplify the set-up of the smart device, and reduce maintenance, leading to a more efficient, machine data-driven approach.

What are Solenoid Interlock Switches?

A solenoid interlock switch is a type of safety switch with an internal solenoid; a wire coil which converts electrical energy to mechanical. This type of mechanism limits access to dangerous areas where machinery may be functioning by ensuring that that barriers remain securely shut. The safety guard can only be opened through either energising (Power to Release) or de-energising (Power to Lock) the solenoid with an external signal. They are often used in industrial environments, for example with high inertia rotating machines.
