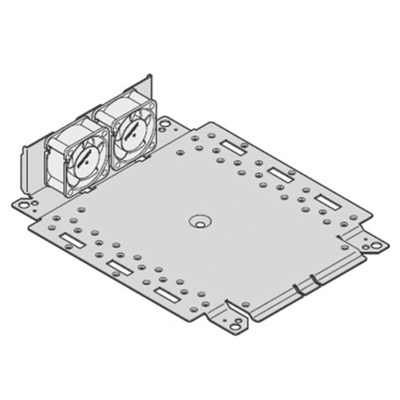

24827-307, nVent SCHROFF Steel Mounting Plate with Fan, 4mm H, 444mm W, 310mm L for Use with Interscale M Electronic Case

Interscale M Mounting Plates with Fan Unit

Mounting plate (raised 4 mm) with integrated fan holder including fan kit for perforated case versions
Fans are simple to fit to the mounting plate using vibration-damping fixing material
Fixed to the desktop case with 4 plastic feet, or in to the 19in. case with 4 screws
Made from 1.5 mm steel, RAL 7016

Fan Technical Data

Fan dimensions: 119 x 119 x 25 mm
Nominal voltage: 12 Vdc
Airflow volume: 170 m³/h
Noise level: 43 dB(A)
Power consumption: 5.3 W
Ambient temperature: - 20 to +70 °C
Terminal (AWG 28, TR 64, insulated and tin-plated): cable length 310 mm

Approvals

VDE, CSA, UL.

Supplied with

Plastic feet and fixing kit.

Interscale M Electronic Cases Catalogue
