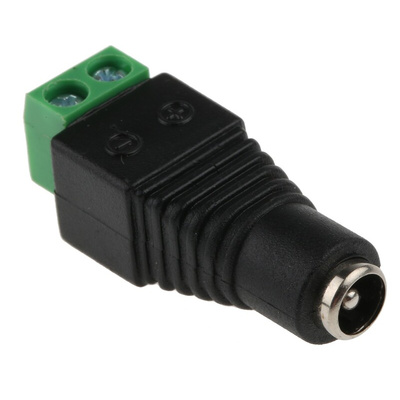

RS PRO DC Socket Rated At 1A, 16 V, Cable Mount, Nickel Plated

RS PRO DC Socket Rated At 1 A, 16 V, Cable Mounting, Nickel-Plated

Mount this DC (direct current) power connector from RS PRO to your electrical cable to supply power to your electrical devices. Its current rating of 1 A and voltage rating of 16 V make it a good choice for use with small appliances.
The female connector has a barrel-type end with an insulated cylindrical ring that's easy to connect to the pin end of a DC cable. Its nickel-plated contacts are resistant to rust and corrosion, ensuring long-lasting performance even when used in harsh environments. As the housing is made of durable plastic, it's protected against impact and wear for greater reliability.
Thanks to the connector's screw terminations, you can create a secure connection without the need for specialised tools. You can use a DC plug like this one to power devices such as small computers, measuring instruments and sound systems.

Features and Benefits

• Straight body orientation


• Nickel-plated contact material


• Current rating of 1 A


• DC socket power connector type


• Cable mounting type


• Pin diameter of 2.1 mm


• Voltage rating of 16 V

RS PRO Datasheet
