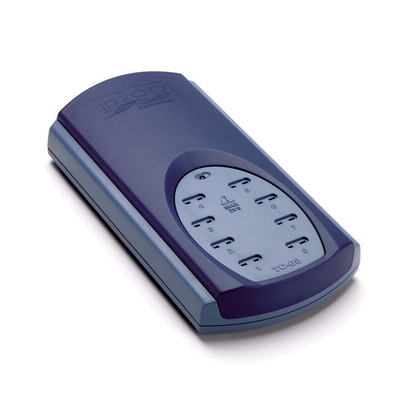

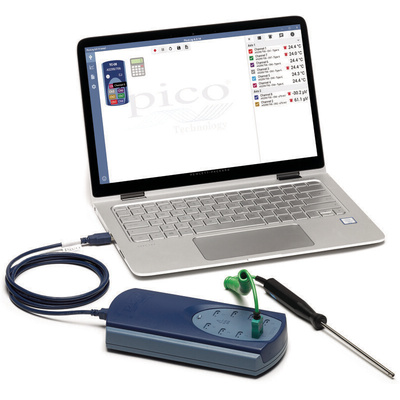

TC-08 thermocouple data logger

The TC‑08 thermocouple data logger offers industry-leading performance and a costeffective temperature measurement solution. With eight direct thermocouple inputs, the TC‑08 can take accurate, rapid readings. In addition, you can use up to 20 units simultaneously on one PC. The logger can measure and record temperatures ranging from −270 °C to +1820 °C using the appropriate thermocouple type (B, E, J, K, N, R, S, T). It draws power from your computer’s USB port, so no external power supply is
necessary.

Features and Benefits

Measures and records up to eight thermocouples at once
20-bit resolution and high accuracy
Supports all commonly used thermocouple types
Measures from −270 °C to +1820 °C
Up to 10 measurements per second
USB-connected and powered
Run multiple units on a single PC

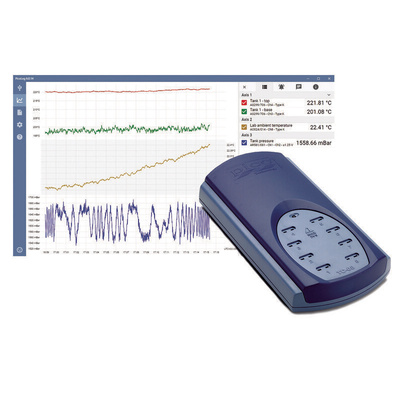

Free PicoLog 6 Cloud® software
Compatible with Windows, macOS, Linux and Raspberry Pi OS

Now with PicoLog Cloud®

Building on the proven design of PicoLog 6, PicoLog Cloud is a free upgrade that introduces many great new features that expand how your Pico data logger can be used.

PicoLog Cloud allows all current Pico data loggers and real-time scopes to capture data either direct to a local memory drive or stream the captured data to a secure online Cloud store, and can then be shared via a link to any browser on a PC, phone or tablet, anywhere in the world. In addition, an API can be used that allows live capture data to be transferred from the Cloud to a 3rd party database or program.
