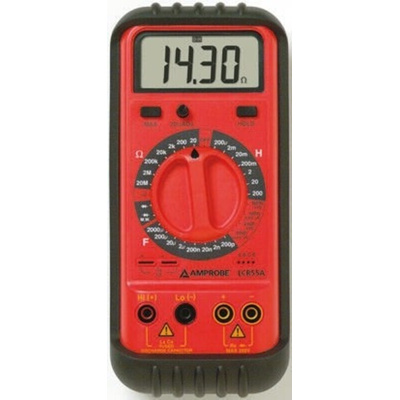

Amprobe LCR55A Handheld LCR Meter 2mF, 20 MΩ, 200H With RS Calibration, LCR-метр

AMPROBE LCR 55A Portable Component Checker

The LCR55A is the ultimate meter in the form of a small handheld device, it is able to measure inductance, capacitance, resistance, diodes, transistors and microwave diodes with precision. With a large digital 2000 point display, auto-power off and low battery indication it is extremely user friendly. Featuring TL36A test leads, spare fuse, alligator clips, user manual and a tough vinyl case it is the ideal LCR meter for busy industrial environments.

Features and Benefits:

• Data hold and max hold
• "Zero adjust" pot for Ohms
• 3-1/2 digit LCD, max reading of 1999
• Alkaline battery life of 200 hours
• Operating temperature of 0 to 50°C
• Resistance measurement 7 ranges 20 Ω → 20 MΩ
• Capacitance 8 ranges from 200 pF → 2000 μF
• Test frequency 200 pF to 2 μF: 1000 Hz

Dimensions 183 x 79 x 38mm

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

Manuel d'utilisation - Testeur de composant LCR55A

LCR55A Handheld Component Tester Data sheet
