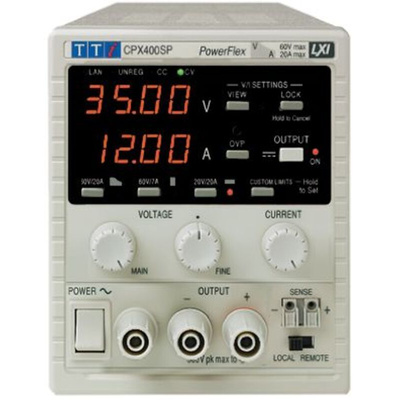

CPX400SP, Aim-TTi CPX Series Digital Bench Power Supply, 0 → 60V, 0 → 20A, 1-Output, 420W - RS Calibrated, Блок питания

CPX400S, SA & SP, Single Output 60V, 20A, 420 Watts PowerFlex

The CPX400S is a single output version of the best-selling CPX400 series of dual ouput PowerFlex PSUs. It is available in three versions, manual control only (CPX400S), with isolated analogue remote control (CPX400SA) or with a full range of digital bus interfaces (CPX400SP). The ultra compact design uses minimum space for bench or rack, and remote control versions include rear terminals.
For an optional GPIB module see stock number 144-5481.

PowerFlex regulation with 420 watts of total power

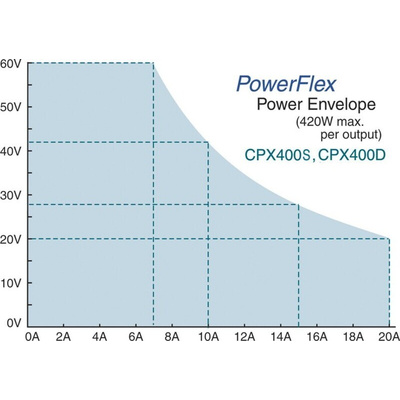

Up to 60V and up to 20A within a 420W power envelope
True analogue controls with digital enhancements
S-Lock function locks voltage and current settings at the touch of a button
Range control buttons offers fixed range or PowerFlex operation
Variable over-voltage protection (OVP) and over-current protection (OCP)
Ultra-compact 3U quarter-rack casing
Rear terminals in addition to front terminals (CPX400SA & CPX400SP)
Galvanically isolated true analogue remote control (CPX400SA)
Full range of bus interfaces, RS232, USB, LXI compliant LAN

Supplied with

User manual, mains lead, CD containing driver software

Aim-Tti Programmable DC Bench Power Supply

The Aim-TTi 420W rated programmable DC bench power supply with RS calibration has 1 output. The output voltage rating ranges between 0V and 60V and the current rating ranges between 0A and 20A. The values of the adjustable outputs are displayed on large 4-digit LED fixed resolution meters. The power supply offers a clean power, excellent regulation, and fast transient response.
Supplied with:
User manual, mains lead, a CD containing driver software.
For an optional GPIB module see stock number 144-5481.

Features and Benefits

Compact 1/2 rack 3U case for a bench use or a rack mounting
Constant voltage or a constant current operation
Independent outputs or isolated voltage tracking
RS-232, USB and LAN interfaces with LXI compliance
Low output noise and a good transient response
Outputs can be wired in a series or parallel for 120V or 20A
PowerFlex design gives a variable voltage and current combinations
PowerFlex or fixed-range operation plus custom limits
Safety binding-post terminals
Selectable remote sensing
Rear terminals in addition to front terminals
True analogue controls with a digital settings locking feature
Variable over-voltage protection (OVP) and over-current protection (OCP)

Applications

Production testing
QA verifications
R&D design verification

Certifications

EN 61010
EN61326

Supplied with
type":"Supplied with",

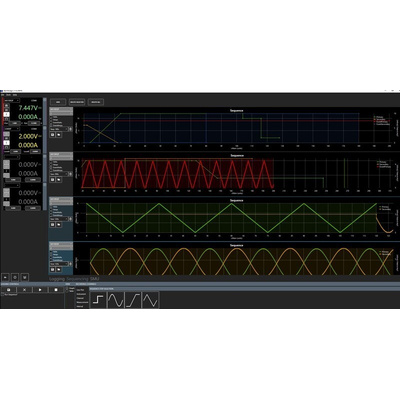

Test Bridge Logging and sequencing software

• Multi instrument control


• Logging to table and graph format


• Timed sequence control across all instruments and channels


• USB, LAN and RS232 compatible

AIM CPX Series Datasheet
