FLK-A3001 FC, Fluke A3001 FC AC Current Clamp Meter, Max Current 2.5kA ac CAT III 1000 V, CAT IV 600 V With UKAS Calibration

Fluke a3001 FC Wireless iFlex AC Current Module Fluke CONNECT™

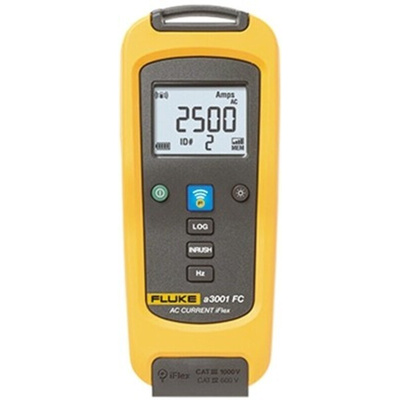

The Fluke a3001 FC Wireless iFlex AC Current Module is a fully functional true-RMS current meter that wirelessly relays measurements to other Fluke Connect™ enabled master units.

The iFlex™ Wireless Current Module allows you to measure around awkward sized conductors or get into tight spaces and makes wire access easier
Measure up to 2500 A ac
Use as a standalone meter or as part of the system
Logging function for recording and saving up to
65000 readings
Inrush function

Supplied with

One true-rms flexible current meter and one iFlex i2500-10 Flexible Current Probe.

Fluke Clamp Meter

The Fluke 3000 FC series True-RMS iFlex wireless clamp meter measures the current range between 0.5A to 2500A AC. This kit contains a multimeter, flex clamp module, batteries and other accessories. It allows you to measure awkward sized conductors or get into tight spaces and makes wire access easier.

Supplied with one True-RMS flexible current meter and one iFlex i2500-10 Flexible Current Probe and magnetic hanging strap.
Fluke CONNECT™
Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is available for Android™ (4.3 and up) and iOS (4s and later) and works with over 20 different Fluke products, the largest suite of connected test tools in the world. And more is on the way. Go to the Fluke website to find out more. Make the best decisions faster than ever before by viewing all temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. (Not compatible with Fluke CNX test tools).

Features and Benefits

Can be used as a standalone meter or a part of the system
Logging function for recording and saving up to 65000 readings
Send data to your laptop and go from logging to analysis and diagnosis
Record overtime to monitor circuit load changes for an hour, a shift or a week
Connect the wireless USB adapter to collect logged data from remote modules by walking past a working module and downloading logged data
Perform for analysis with your PC and share the results using Fluke Cloud™ storage and ShareLive™ video call
Inrush function
The safety rating of CAT III 1000V, CAT IV 600V
LCD w/backlight: 3 1/2 digits
Operating temperature ranges between -10°C and 50°C

Applications

Petrochemical industry
Oil and gas
Food and beverages
Pharmaceuticals

Certifications

CE
cCSAus
CSA
FCC: T68-FBLE
IC: 6627A-FBLE
IP42 rated
EN 61326-1:2013
IEC 61010-1

Fluke CONNECT™

Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field.
The Fluke Connect mobile app is available for Android™ (4.3 and up) and iOS (4s and later) and works with over 20 different Fluke products, the largest suite of connected test tools in the world. And more is on the way. Go to the Fluke website to find out more.
Make the best decisions faster than ever before by viewing all temperature, mechanical, electrical and vibration measurements for each equipment asset in one place.
(Not compatible with Fluke CNX test tools)

Datasheet
