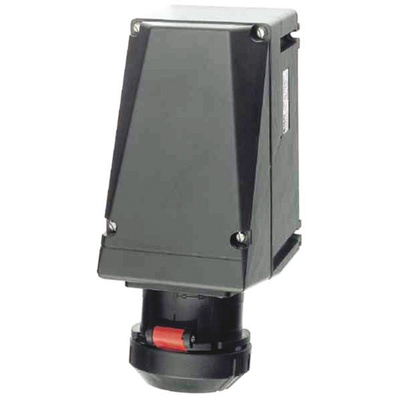

GHG 5124406R0001, Eaton, GHG IP54, IP66 Black Wall Mount 4P Heavy Duty Power Connector Socket, Rated At 32A, 415 V, Разъем питания

Eaton CEAG Explosion Protected Plug and Socket System

Eaton CEAG Crouse-Hinds enhanced BS4343 (IEC309) industrial power connectors are designed specifically for hazardous area environments. The Enhanced ranges offer mechanical advantages over the popular and widely used standard versions. These heavy-duty connectors provide a reliable high-performance power supply connection even under vibration or the effects of an aggressive atmospheric environment.

Features & Benefits

• Patented plug and turn connections
• Heavy duty and high-quality connectors designed for power distribution in industrial settings
• Time-saving easy plug-in with low insertion force
• Ingress protection to IP66/67
• Suitable for Zone 1 and Zone 2 applications, and also Zone 21 and Zone 22 dust applications

CEAG Standard hazardous area plug connectors will mate with Enhanced sockets and couplers
CEAG Enhanced hazardous area plug connectors will NOT mate with standard sockets and couplers
Couplers will accept Enhanced and Standard Plug connector

Note

Cable entry sizes for 16A versions: 8-17mm², 32A 17-28mm², terminal capacity: 16A 1-4mm², 32A 4-10mm²

Approvals

BS4343; IEC309; Eex de IIC T6; ATEX; PTB ATEC 1039

Note

Eaton formerly known as CEAG
