GHG 5127506R0001, Eaton, GHG IP54, IP66 Black Cable Mount 3P + N + E Heavy Duty Power Connector Plug, Rated At 32A, 415 V, Разъем питания

Eaton CEAG Explosion Protected Plug and Socket System

Eaton CEAG Crouse-Hinds enhanced BS4343 (IEC309) industrial power connectors are designed specifically for hazardous area environments. The Enhanced ranges offer mechanical advantages over the popular and widely used standard versions. These heavy-duty connectors provide a reliable high-performance power supply connection even under vibration or the effects of an aggressive atmospheric environment.
Options available include:
377-7236 – Yellow 2P+E hazardous area plug,16A 120V
377-7242 – Blue 2P+E hazardous area plug,16A 240V
377-7258 – Red 3P+E hazardous area plug,16A 415V
810-4692 – Black 4P Heavy duty plug, Zone1, 32A, 415V
811-0704 – Black 5P Heavy duty plug, Zone1, 32A, 415V

Features & Benefits

• Patented plug and turn connections
• Heavy duty and high-quality connectors designed for power distribution in industrial settings
• Time-saving easy plug-in with low insertion force
• Ingress protection to IP66/67
• Suitable for Zone 1 and Zone 2 applications, and also Zone 21 and Zone 22 dust applications

CEAG Standard hazardous area plug connectors will mate with Enhanced sockets and couplers
CEAG Enhanced hazardous area plug connectors will NOT mate with standard sockets and couplers
Couplers will accept Enhanced and Standard Plug connector

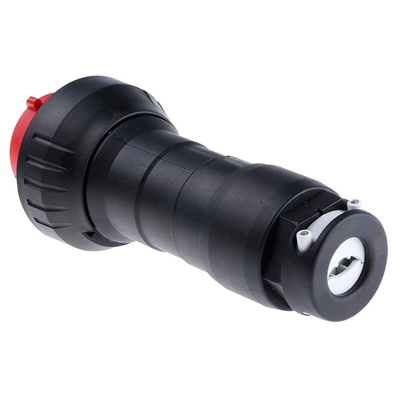

Eaton CEAG Crouse-Hinds Heavy-Duty Power Connector Plug, 32A, 415V - GHG Series - GHG 5127506R0001

Choose this heavy-duty plug from Eaton CEAG Crouse-Hinds to bring electrical power to machinery and systems in demanding environments. It's suitable for use in hazardous conditions and can accommodate operating temperatures as low as -20°C and as high as +40°C. This is a five-pole connector housed in a glass-fibre-reinforced polyester casing with an IP66 (ingress protection) rating that certifies it's safe from dust, particulates and moisture.

• Simple plug-in functionality needs low insertion force
• Unaffected by ice and condensation, so safe to use in freezing conditions
• Current rating of 32A and voltage rating of 415V for versatile use with industrial machinery

Will the connection come loose if it experiences vibrations?

No – the innovative design ensures a secure connection even when subjected to vibrations and disturbances common to explosive conditions. Simply insert the plug into a socket and twist the connection to lock it into place.

Where should this plug be mounted?

Mount this plug to any flat, stable surface and fasten with at least two screws. It can also be mounted directly to a wall for greater versatility and convenience.

Note

Eaton formerly known as CEAG
