SparqEE, ShieldAv1-0

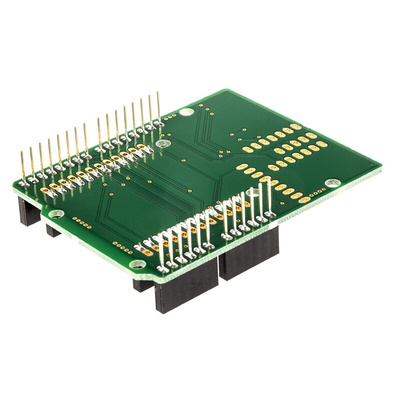

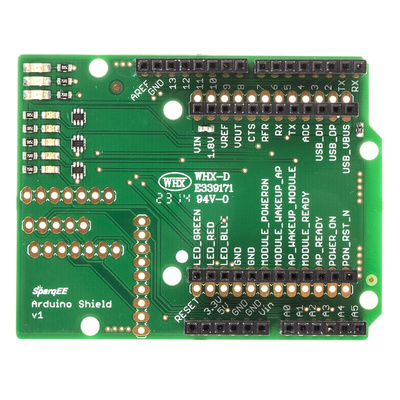

SparqEE Arduino Adapter Shield

The ShieldAv1.0 is a shield or adapter that connects the SparqEE CELLv1.0 to an Arduino processor board without any additional wiring. In addition, breakouts are provided for the four additional SparqEE boards (ACCELv1.0 (811-0720), GPSv1.0 (811-0732), POWERv1.0 (811-0726), RELAYv1.0 (811-0739)) if the user prefers to directly connect any of those boards to the shield

LEDs for CELLv1.0 status lin
Dimensions: 55 x 70mm
Weight: 0.70oz
Operating temperature range: -40 to +85°C

Note

Please visit the following websites for further information:

SparqEE: http://sparqee.com/
Arduino Shield: http://www.sparqee.com/products/sparqee-shielda
Forum: http://www.forum.sparqee.com/
Code/Drivers: http://www.sparqee.com/code-cell/

Arduino Adapter Shield datasheet

SparqEE Shield for Arduino Data Sheet
