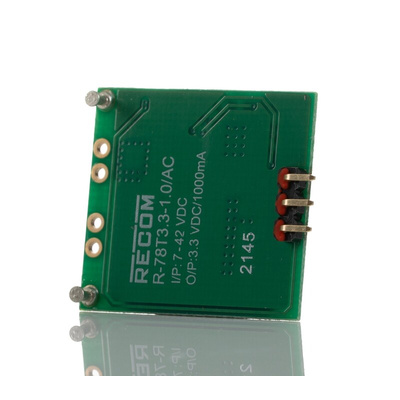

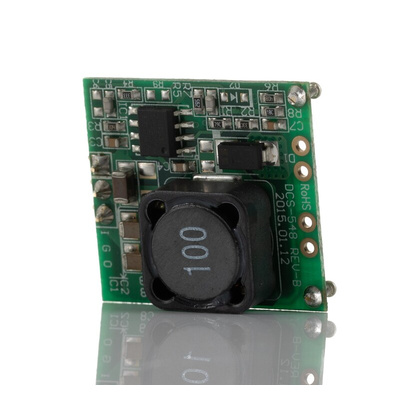

R-78T3.3-1.0/AC-TRAY, Recom R78T DC-DC Converter, 3.3V dc/ 1A Output, 7 → 42 V dc Input, 3.3W, Screw Mount, Surface Mount, +85°C Max, Преобразователь

RECOM DC-DC Converter, 88% Efficiency, ±0.4% Load Regulation - R78T Series - R-78T3.3-1.0/AC-TRAY

Steady your current with this DC-DC converter from RECOM. It's a switching regulator that takes an input voltage between 7 and 42V DC and turns it into an output of 3.3V DC with a current of 1A. Designed to provide the correct level of power to components in battery-operated equipment, it has highly portable compact dimensions of 25 (W) x 23 (L) x 10mm (D). A load regulation of ±0.4% ensures that your device continues to operate at the desired voltage.

Features & Benefits

• Screw mounting for simple installation
• Short-circuit protection safeguards your equipment
• SIP package type for easy incorporation into your system
• 88% efficiency eliminates the need for a fan or heat sink
• Industry-standard pinning for a no-fuss setup

Applications

• Communications equipment
• Lighting control systems
• Industrial automation devices

How much does this converter weigh?

It weighs just 4.5g, making it ideal for mobile applications.

Is this product suitable for extreme industrial conditions?

Yes, it has a wide operating temperature range between -40°C and +85°C, making it well-suited to harsh environments.
