R-78T5.0-1.0/AL-TRAY, Recom R78T DC-DC Converter, 5V dc/ 1A Output, 8 → 42 V dc Input, Screw Mount, Surface Mount, +85°C Max Temp, Преобразователь

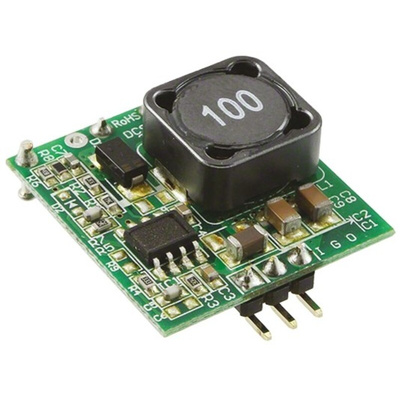

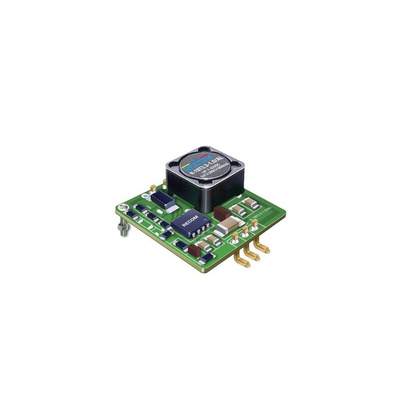

R-78Txx 1.0 Series Single Output DC/DC Converter

The Recom R-78T series of DC-DC converters are compact, low profile SMD switching regulators. They have 3 standard pinning options: AC, AL and FC.
The R-78T series has a high efficiency of up to 95%, which means that these DC-DC converters do not require heatsinks or fans. The switching regulator can operate reliably between -40°C and 85°C without derating. These DC-DC converters are the ideal space-saving solution for portable battery-operated applications.

Efficiency up to 95%
No need for heatsinks
Industry standard Pin-out
1.5A start-up overload capacity
Wide input range 7V-42V
Operating temperature range -40°C to 85°C
Short circuit protection
350kHz fixed switching frequency, shielded magnetics
Low profile
Low cost

RECOM DC-DC Converter, ±0.4% Load Regulation, ±0.2% Line Regulation - R78T Series - R-78T5.0-1.0/AL-TRAY

Looking to step down the voltage in your system? This DC-DC converter from RECOM is the way to go. Use it to convert an 8 to 42V DC source to a 5V DC output. With a 92% efficiency rating, the unit runs cool and doesn't need a heatsink or fan, so your setup is energy-efficient and streamlined. As it has dimensions of 10 (D) x 23 (L) x 25mm (W), this is a compact option that fits neatly into tight setups. Thanks to a mean time between failures of 367,000 hours, you can rest assured it's built to last.

Features & Benefits

• Dynamic operating temperature range between -40°C and +80°C means it withstands challenging conditions
• Screw mounting makes assembly a breeze
• Short-circuit protection for additional safety
• SIP package saves time by easily integrating into existing systems

Applications

• Telecommunication equipment
• Automotive systems
• Computing networks
• Industrial automation

How much does this converter weigh?

This converter weighs just 4.5g, making it a lightweight option for easy handling and low system strain.

Is this free from signal disruption?

Thanks to a low ripple and noise of 100mV Pk-Pk, this converter delivers stable and smooth power.

1.0 AMP SMD Single Output DC/DC-Converter Data Sheet
