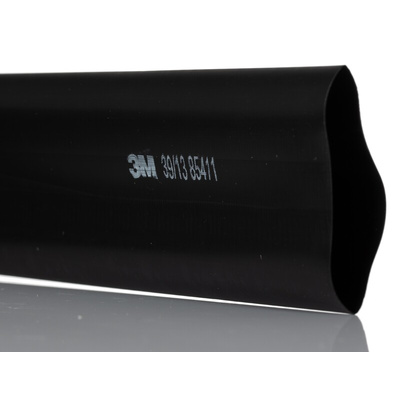

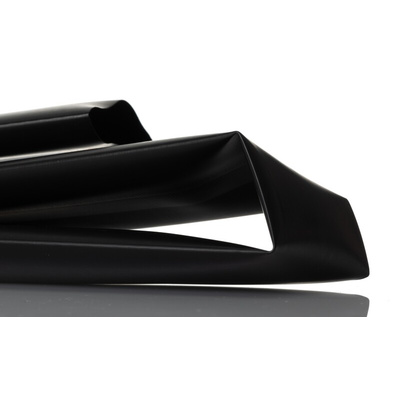

TE100046115, 3M Halogen Free Heat Shrink Tubing, Black 39mm Sleeve Dia. x 1m Length 3:1 Ratio, GTI-3000 Series

Black Heat Shrink Thin Wall Tubing

The GTI Series heat shrink tubing has been designed to offer both excellent insulation and protection in numerous industrial applications. It is flexible and very easy to install due to the high shrink ratio and is ideal for both cable marking and identification.

Features and Benefits

• Heat shrink ratio of 3:1 meaning when heated the tubing shrinks to one third of its original diameter
• Easy to install due to high shrink ratio
• Flexible polyolefin tubing
• Thin walled tubing
• Shiny smooth particle free surface
• Halogen Free
• Flame resistance
• Operating temperature -55°C to + 135°C
• Heat Shrink temperature: 120°C

What does a heat shrink ratio of 3:1 mean?
A ratio of 3:1 means when the tube is heated it shrinks to one third of its original diameter.

How can I shrink the GTI Series tubing?
A heat gun or a heat shrink oven are ideal ways to shrink your tubing. Before heating always check to ensure you know the correct heating temperature of your tubing.

Remember to ensure all health and safety precautions have been taken prior to using a heating devise.

Available in this range

• 811-2653 Black Heat Shrink, 3:1 3mm - 1mm 1m\t
• 811-2662 Black Heat Shrink, 3:1 6mm to 2mm 1m\t
• 811-2665 Black Heat Shrink, 3:1, 9mm to 3mm, 1m\t
• 811-2669 Black Heat Shrink, 3:1 18mm - 6mm 1m\t
• 811-2678 Black Heat Shrink, 3:1 24mm - 8mm 1m\t
• 811-2671 Black Heat Shrink, 3:1 39mm to 13mm 1m

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Standards

RoHS

3M Heat Shrink Tubing, Flame-Retardant, -55°C to +135°C Operating Temperature Range - GTI-3000 Series - TE100046115

Keep everything together in the most challenging environments with this heat shrink tubing from 3M. You can use it to bundle cables, wires and other components that need physical protection and electrical insulation. Thanks to an operating temperature range of -55°C to +135 °C and flame-retardant properties, you can rely on the tube in challenging industrial environments. The shiny, smooth and particle-free surface means your bundled cables can push in freely and cleanly, without risk of snagging.

Features & Benefits

• Heat shrink ratio of 3:1 offers a balance between flexibility and thickness
• Can be written on, making it ideal for cable marking and identification
• Halogen-free, so is a safe option for use in busy areas

Applications

• Aerospace sector
• Marine installations
• Automotive industry

What's this tubing made from?

It's made from polyolefin, a polymer known for its durability, chemical resistance and electrical insulation.

GTI 3000 Heat Shrink Data Sheet
