DE272919478, 3M End Cap Black, Polyolefin Adhesive Lined, 20mm

Adhesive Lined End Caps

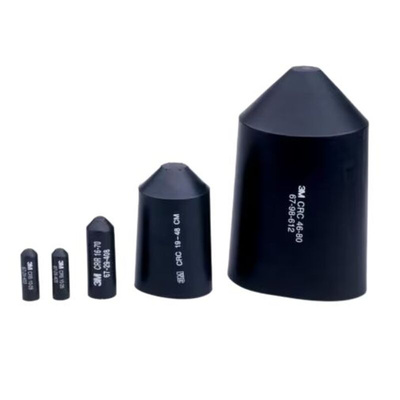

3M Adhesive Lined End Caps
From 3M, these heat shrinkable end caps are ideal for sealing cable ends. Quick and easy to apply, they provide fantastic mechanical and environmental protection to the cable, helping to ensure that impact or environmental ingress don’t interfere with the integrity of the wiring.

Features and Benefits

• Heat shrink heavy duty end caps rapidly shrink
• The melted adhesive lining flows and covers the substrate
• A flexible bond is formed with a variety of rubbers, metals and plastics
• Adhesive solidifies once cool
• Permanent non-drying flexible water-resistant barrier
• Reflow occurs at temperatures above +80°C

Applications

End caps are frequently used to weatherproof or otherwise protect exposed connections or cable ends. They are an efficient way to seal wiring that is not covered by a cable sheath, and so are used in many kinds of electrical installations, from manufacturing to domestic wiring.

• 811-2675 is an adhesive lined End Cap for 4.1-7.9 mm OD cables
• 811-2684 is an adhesive lined End Cap for 7.9-10.9 mm OD cables
• 811-2681 is an adhesive lined End Cap for 25.4-50.0 mm cables
• 811-2690 is an adhesive lined End Cap for 30.0-60.0 mm cables
• 190-2062 is an adhesive lined End Cap for 4.1-7.9 mm OD cables

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Note

RoHS

3M Heat Shrink Boot, For Indoor and Outdoor Applications, +120°C Minimum Shrink Temperature - DE272919478

Protect cable ends from mechanical and environmental hazards with this heat shrink boot from 3M. Its inner diameter quickly contracts from 20 to 8mm when heated to a minimum of +120°C. This makes it a versatile pick for shielding cables with an outer diameter between 7.9 and 10.9mm. An adhesive inside melts during heating and solidifies as it cools to create a flexible but watertight seal.

Features & Benefits

• Compatible with rubbers, metals and plastics to suit commonly used cables
• Glue reflows above +80°C for easy removal or adjustment

Applications

• Manufacturing equipment
• Domestic wiring
• Electrical engineering

What's the benefit of this product's XLPO construction?

As a high-performance polymer, cross-linked polyolefin (XLPO) withstands temperatures between -30°C and +135°C and resists UV, abrasion and corrosion. What's more, it's an excellent electrical insulator with 10kV/mm dielectric strength and is both flame-retardant and halogen-free, so it's a safe choice in case of fire.

Heat Shrink Heavy Duty End Caps Data Sheet
