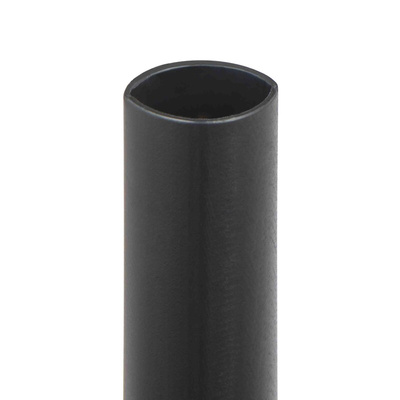

TE100037569, 3M Adhesive Lined Halogen Free Heat Shrink Tubing, Black 12mm Sleeve Dia. x 1m Length 4.5:1 Ratio, MDT-A Series

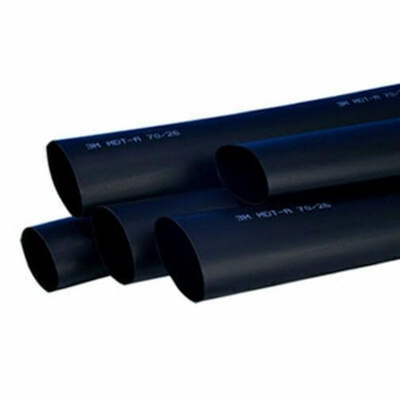

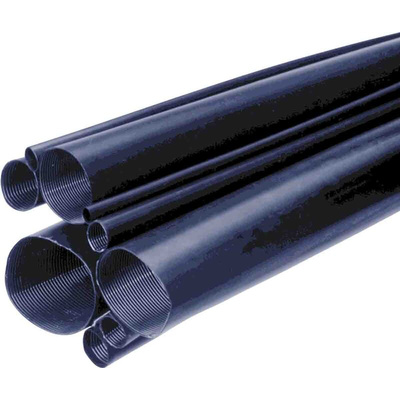

Medium Wall Adhesive Lined Heatshrink MDT - A Series

A medium wall tubing providing tough and flexible insulation. Ideal for protecting cable joints and terminations. It is suitable for underground cable joint applications, offshore and naval applications. The medium wall adhesive lined heat shrink is well suited for environmental sealing of a range of electronic, electrical and mechanical applications such as connections, splices etc.

Features and Benefits

• Flexible polyolefin
• Specifically designed adhesive, applied during tubing’s extrusion process
• 3:1 shrink ratio
• Excellent sealing properties
• Self-extinguishing outer wall
• Operating temperature -55 up to 110°C
• Good chemical resistance
• Balances electrical, physical and chemical properties for various industrial applications
• Offers shrink-fit protection and strain relief of wires, solder joints, terminals and connections
• Suitable for lightweight wire-harness covering, wire marking, wire bundling and component packaging
• Made of flexible polyolefin
• Halogen free

Why should I use the 3M medium wall adhesive lined heatshrink MDT – A Series?
This medium wall adhesive lined heatshrink tubing has good chemical resistance, flame retardant and is self-extinguishing. The adhesive lining allows it form a seal against moisture and other fluids allowing it to be adaptable to various applications.

What does a heatshrink ratio of 3:1 mean?
A ratio of 3:1 means when the tube is heated it shrinks to a third of its original diameter.

How can I shrink the tubing?
A heat gun or a heat shrink oven are ideal ways to shrink your tubing. Before heating always check to ensure you know the correct heating temperature of your tubing.

Remember to ensure all health and safety precautions have been taken prior to using a heating devise.

Available in this range

• 811-2697 Medium wall adhesive lined heatshrink, 12-3mm, 1m
• 811-2707 Medium wall adhesive lined heatshrink, 19-6mm, 1m
• 811-2700 Medium wall adhesive lined heatshrink, 27-8mm, 1m
• 811-2704 Medium wall adhesive lined heatshrink, 32-7.5mm, 1m
• 811-2713 Medium wall adhesive lined heatshrink, 38-12mm, 1m
• 811-2716 Medium wall adhesive lined heatshrink, 50-18mm, 1m
• 190-2063 Medium wall adhesive lined heatshrink, 50-18mm, 1m

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Standards

VDE 0278 part 3

3M Heat Shrink Tubing, Adhesive Lined, Polyolefin Material - MDT-A Series - MDTA12/3

When you need insulation that stays cool under pressure, this heat shrink tubing from 3M has you covered. It's lined with a specially designed adhesive, so latches onto cables while locking out moisture. As it's also chemical resistant, contaminants are held at bay. This makes the tubing a great fit for underground cable joints and bundled electrical components. Once heated, the sleeve diameter reduces from 12mm to approximately 3mm to give a super-tight, shrink-wrap fit.

Features & Benefits

• Made from polyolefin material for durable flexibility
• Flame retardant and self-extinguishing, so it won’t catch alight in the event of a fire
• Wide operating temperature range between -55°C and +130°C means it performs reliably in demanding conditions

Applications

• Telecommunications networks
• Electronic manufacturing
• Aerospace technology

What heat-shrink ratio does the tube have?

The heat shrink ratio is up to 4.5:1. This means the tube shrinks down by a maximum degree of 4.5 times smaller than its original diameter.
