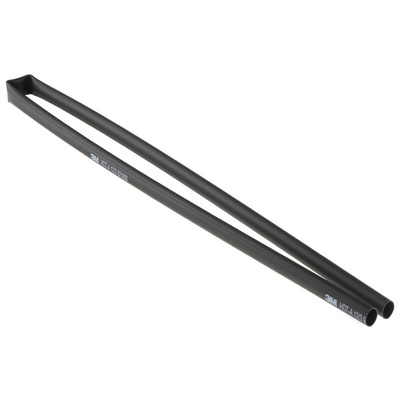

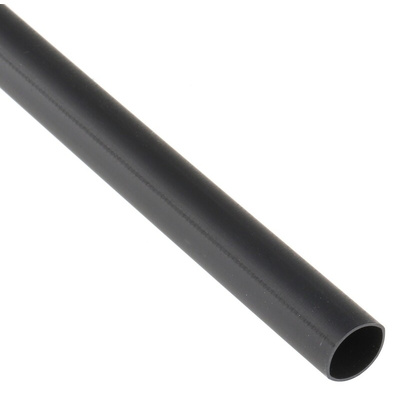

TE100037437, 3M Adhesive Lined Heat Shrink Tubing, Black 12mm Sleeve Dia. x 1m Length 4:1 Ratio, HDT-A Series

3M Heat Shrink Tubing

The 3M HDT-A series black 1m heat shrink tube has a 4:1 shrink ratio. The polyolefin tube has a thick wall. The toughness and weather ability of the tubing makes it well suited for the exposed applications. It is supplied with a specially designed hot melt adhesive layer. The adhesive is applied during the extrusion of the tubing. This helps in achieving a smooth, constant, adhesive layer that ensures excellent sealing properties.
Inclusions:
A hot melt adhesive layer.

Features and Benefits

• Sleeve diameter is 12mm
• Shrunk diameter is 3mm
• Dielectrical strength is 110kV/cm
• Tensile strength is 20N/mm^2 total wall
• Excellent sealing properties
• Self-extinguishing outer wall
• Operating temperature ranging between -55°C and 130°C (outer wall only)

Applications

• Sealing underground or exposed inline joints
• Terminations

Certifications

VDE 0278 part 3

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

HDT-A Thick Wall Adhesive Coated Tubing Heat Shring Data Sheet
