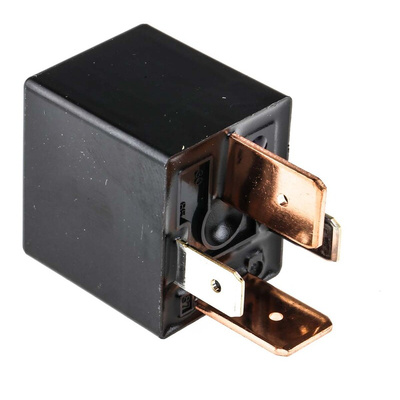

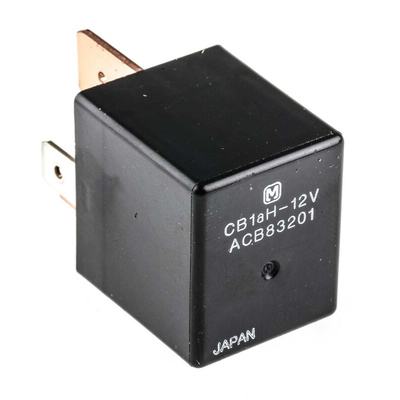

CB1AH-12V, Panasonic Plug In Automotive Relay, 12V dc Coil Voltage, 70A Switching Current, SPST, Реле

Panasonic CB Series Automotive Relays

Panasonic CB series high power automotive relays feature a high switching capacity and have an ISO terminal arrangement in a compact (22x26mm) space saving housing. Typical applications include automobiles, construction equipment and agricultural equipment.

Mini-ISO terminal arrangement
Compact
High switching capacity of 40 A
High thermal resistance
Low temperature rise
Built-in resistor type available

Panasonic SPST Automotive Relay

The Panasonic SPST non-latching high power automotive is a plug in mount relay. It is actuated with the help of a 12VDC coil and up to 70A current through the coil to switch positions. This relay has silver alloy contacts. The contact arrangement is 1 Form A with sealed type protective construction.

Features and Benefits

• High thermal resistance of 125°C
• Service temperature range between -40°C and 85°C
• High contact capacity
• Built-in type resistor
• Compact and mini-ISO terminal
• Surge absorbing built-in diode type that works when the relay coil is OFF

Applications

• Automotive engines
• Agricultural equipment
• Construction equipment

CB Relays Data Sheet
