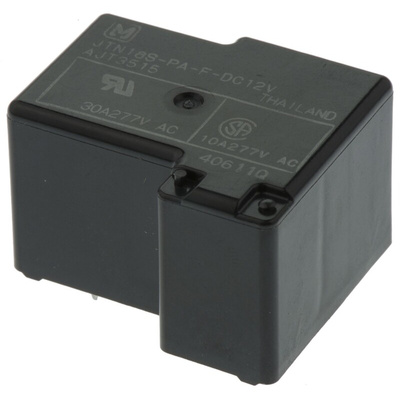

JTN1AS-PA-F-DC12V, Panasonic PCB Mount Power Relay, 12V dc Coil, 30A Switching Current, SPST, Реле

JT-N Series

These compact power relays are economical and offer a high switching capacity. Typical applications for these power relays include automotive, air conditioning, heating and ventilation and home appliances.

Compact and Economical
High switching capacity, 30A
Class F types as standard
Sealed construction

Approvals

UL/C-UL

Panasonic SPNO Non-Latching Relay

The Panasonic SPNO non-latching is a PCB mount relay. It is actuated with the help of a 12VDC coil and up to 30A current through the coil to switch positions. This relay has silver alloy contacts. The contact arrangement is 1 Form C with sealed type protective construction and the coil insulation is of Class F.

Features and Benefits

• Service temperature range between -55°C and 85°C
• Built-in type resistor
• Compact and economical
• Wide line-up with PCB and plug-in type

Applications

• Home appliances
• Automotive engines
• Air conditioner

JT-N Relays Data Sheet
