Eurotherm NANODAC/VH/X/X/LRR/XX/TS/WD, 4 Channel, Paperless Chart Recorder, Диаграммный самописец

Eurotherm Chart Recorder

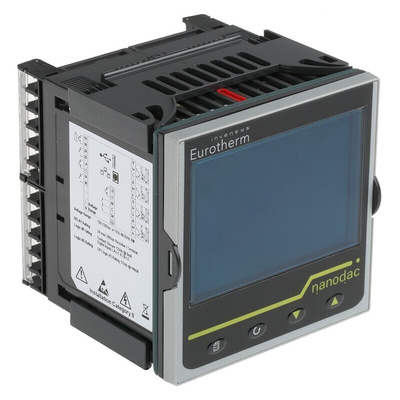

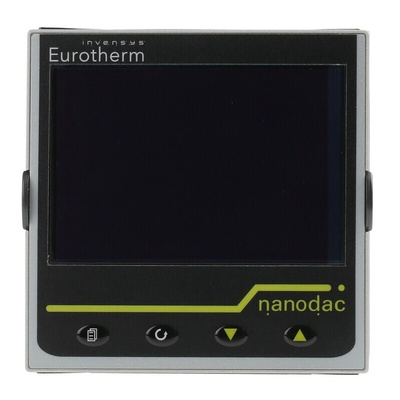

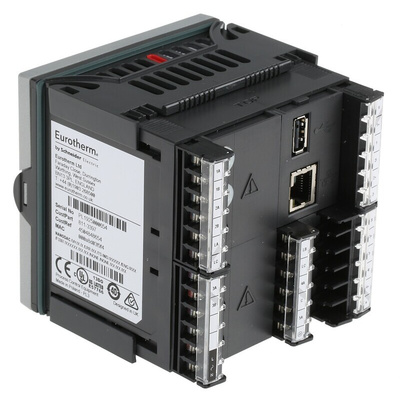

The Eurotherm NANODAC is a 4-channel paperless videographic chart recorder used to measure the current, millivolt, voltage, resistance, temperature. This is a paperless recorder with operating voltage that ranges between 100Vac and 230Vac. The compact DIN panel mount unit offers four high accuracy universal inputs for data recording and PID control. The 3.5in TFT display offers incredibly clear visualisation of process parameters with a wide selection of configurable views to best suit the application. The views include horizontal and vertical trends, horizontal and vertical bar graphs, numeric, alarm panel, alarm status, and control loops. This unit also provides user wiring from the front of the product for detailed configuration without the need to connect to a PC. It is used to monitor and measure current, millivolt, resistance, temperature and voltage.

Features and Benefits

30 virtual channels
50MB flash memory
Cascade with auto tune
Easy network integration to control system with Ethernet and MODBUS TCP/IP slave (default)
Secure data recording
3.5in VGA crystal clear display
Steriliser and relative humidity application block
USB removable data storage facility
High accuracy universal inputs
1/4 DIN panel mount
Wash down front
Multi-language (English, French, German, Italian and Spanish)
1/4DIN panel mount
Logic/Relay/Relay output

Certifications

IP10 rated
IP65 rated
IP66 rated
