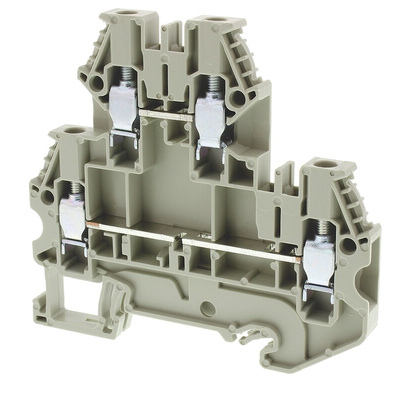

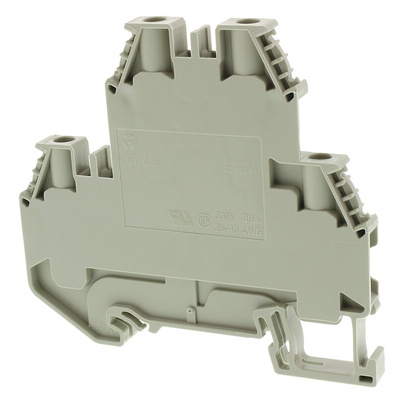

58.504.7055.0, Wieland WT 4 E Series Grey Multi Level Terminal Block, Double-Level, Screw Termination, ATEX

WT 4 E Multi-Tier Blocks with Screw Connection

Multi-tier block for mounting on TS35 DIN rail
Nominal cross-section 4 mm²
Connection capacity: 2 wires, equal size 0.14 - 2.5 mm²

For the compatible WT 4 E PE earth (ground) block, please see RS 811-3882

Multi-Tier Terminal WT 4 E

From the WT 4 E series, this feed through DIN rail terminal block, has a screw connection method for mounting onto a TS-35 rail or top hat for all your electrical installations.

Features and Benefits

• WT 4 Series
• Grey in colour
• Multi-tier levels: 2
• Thermoplastic insulation material
• Screw connection method for mounting
• Nominal cross section 4mm 2
• Width dimension 6 mm
