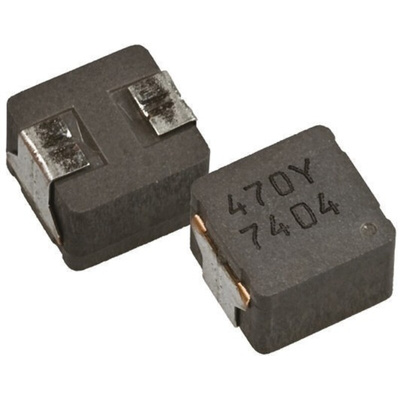

ETQP3M3R3YFP, Panasonic, ETQP3M, 0530 Wire-wound SMD Inductor with a Metal Composite Core, 3.3 μH ±20% Wire-Wound 8.6A Idc, Дроссель

ETQP3M Series Wire Wound Chokes

Panasonic ETQP3M choke coils (sometimes known as the PCC-M0530M series) provide a high reliability solution. Featuring heat resistance up to +150°C, the use of ferrous alloy magnetic material provides excellent inductance stability. New metal composite core technology creates low buzz noise, and the integral construction enables high vibration resistance.

AEC-Q200 qualified
High reliability
High bias current
Stable
Low buzz noise
High efficiency
Low RDC of winding
Low eddy-current loss of the core

Applications

Typical applications include DC-DC converters and noise filters for drive circuitry that need high peak current and operating temperature handling capabilities. These choke coils are AEC-Q200 qualified and are suitable for automotive applications.
