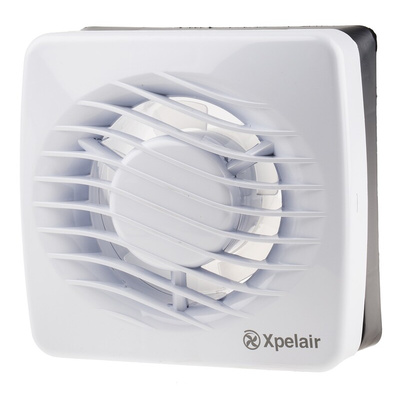

Xpelair 90839AW DX Wall Mounted Extractor Fan, 76m³/h, 35dB(A), Duct Size 100mm, Вентилятор

Xpelair Extractor Fan

The Xpelair extractor fan has an airflow of 76m³/h and has a supply voltage rating ranging from 220VAC to 230VAC. It comes with a universal mounting kit comprising of a wall tube, 2 gaskets, outer grille, and a skirt moulding for window mounting in single glazing up to 6mm. The fane also includes an air operated back draught shutter and ducting. This fan is supplied as a fan unit and requires separate kits for wall, ceiling or window mounting applications.
It is available with a face height of 155mm, face width of 165mm and depth of 43mm.

Features and Benefits

Wall mounted
Airflow of 76m³/h

Lubricated for life motors with thermal cut-out protection
Clip-off front cover for ease of cleaning
Noise level of 35dB (A)
Duct size diameter is 100mm

Applications

Kitchens
Utilities

Certifications

IPX5 rated
BEAB rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Datasheet - 90839AW
